Model |
SY3020-Basic version |
SY3060-Professional version |
|
Caliber |
Single Caliber 4mm or 8mm |
Switchable caliber 4mm and 8mm |
|
SCI SCE |
SCI |
SCI and SCE |
|
Light type |
Full spectrum LED |
Full spectrum LED+Dual UV |
|
Fix position |
Visual |
Camera location |
|
Repeated Accuracy |
△E≤0.07 |
△E≤0.03 |
|
Color space |
CIE-Lab, CIE-LCh, Luv, Hunter-Lab, XYZ, Yxy, sRGB, DIN LAB99, CMYK (A/T/E/M/I) Field density, Munsell, Reflectance (bright vision), Blackness, YI yellow, Isochromatic spectrum (light jumping), hiding power, tint/strength/dye strength, Color fastness, Taube whiteness, Berger whiteness, Tappi whiteness, Cros whiteness, Stephansen whiteness, Ganz whiteness, Hunte r whiteness (ASTM), Whiteness (CIE), AATCC whiteness, R457/ISO2470 whiteness, GB/T17644 whiteness |
|
|
Color difference formula |
△E*ab、AE*ch、AE*uv、AE*HunterLab、AE*CMC(l:c)、AE*94、AE*00、AE*sR GB、AE*BFD、M*FCMII、AE*DIN99 |
|
|
Light source |
A、C、D50、D55、D65、D75、F1、F2、F3、F4、F5、F6、F7、F8、F9、F10、F11、F12、CWF、U30、U35、DLF、NBF、TL83、TL84 |
|
|
Observer |
10°(CIE1964) 2°(CIE1931) |
|
|
Wave length |
400-700nm 10nm interval |
|
|
Reflectivity |
Range: 0-200% Resolution: 0.01% |
|
|
Sensor |
CMOS sensor |
|
|
Geometric |
D/8 40mm integrating sphere |
|
|
Calibration |
Default: Automatic |
|
|
Display Resolution |
0.01 |
|
|
Table difference |
△E*ab≤0.4 |
|
|
Test speed |
1.0s |
|
|

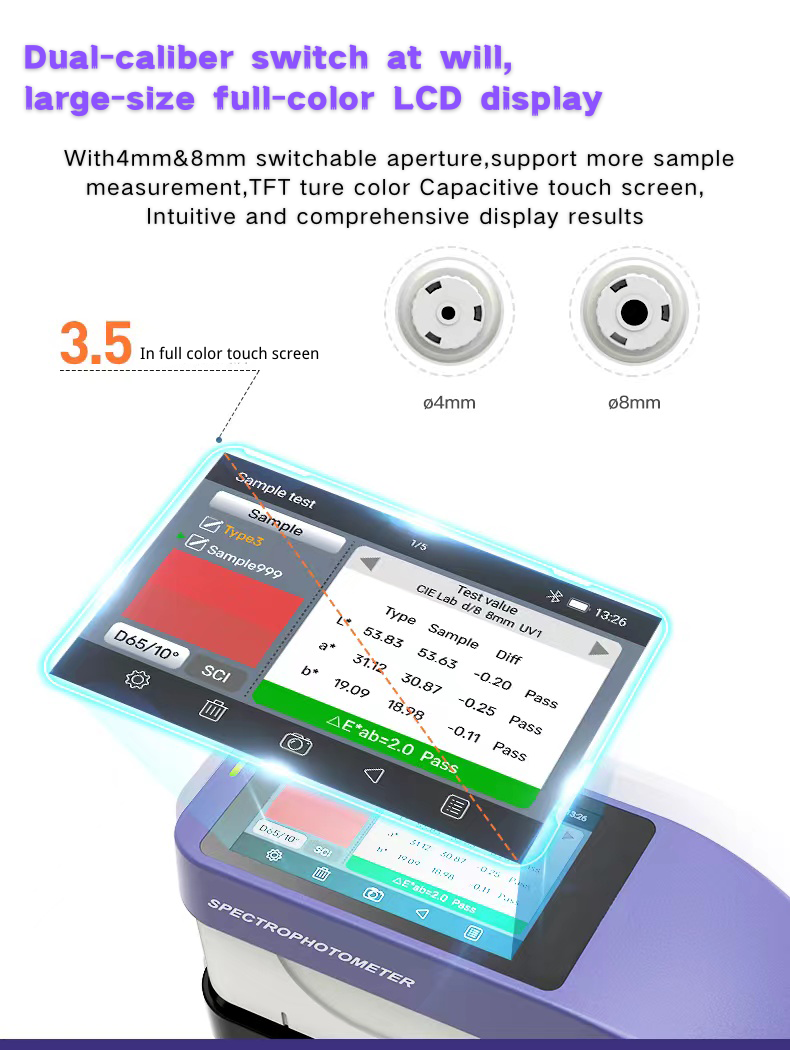

Display |
3.5 inch full color capacitive touch screen |
|
|
Language |
简体中文,繁体中文,English |
|
|
Quality Control Software |
Polymer Li-ion battery 10000 times full charged |
|
|
Interface |
Type C Bluetooth |
|
|
App platform |
Andorid IOS Windows |
|
|
Storage |
8000 group Mass storage for APP |
|
|
Size: |
181x67x67mm (without base) |
|
|
N.W/G.W |
330g/1200g |
|
|
Packing list |
Instrument,calibrate base,type C charger,user manual,warranty card,single caliber |
Instrument,calibrate base,type C charger,user manual,warranty card,dual caliber |
