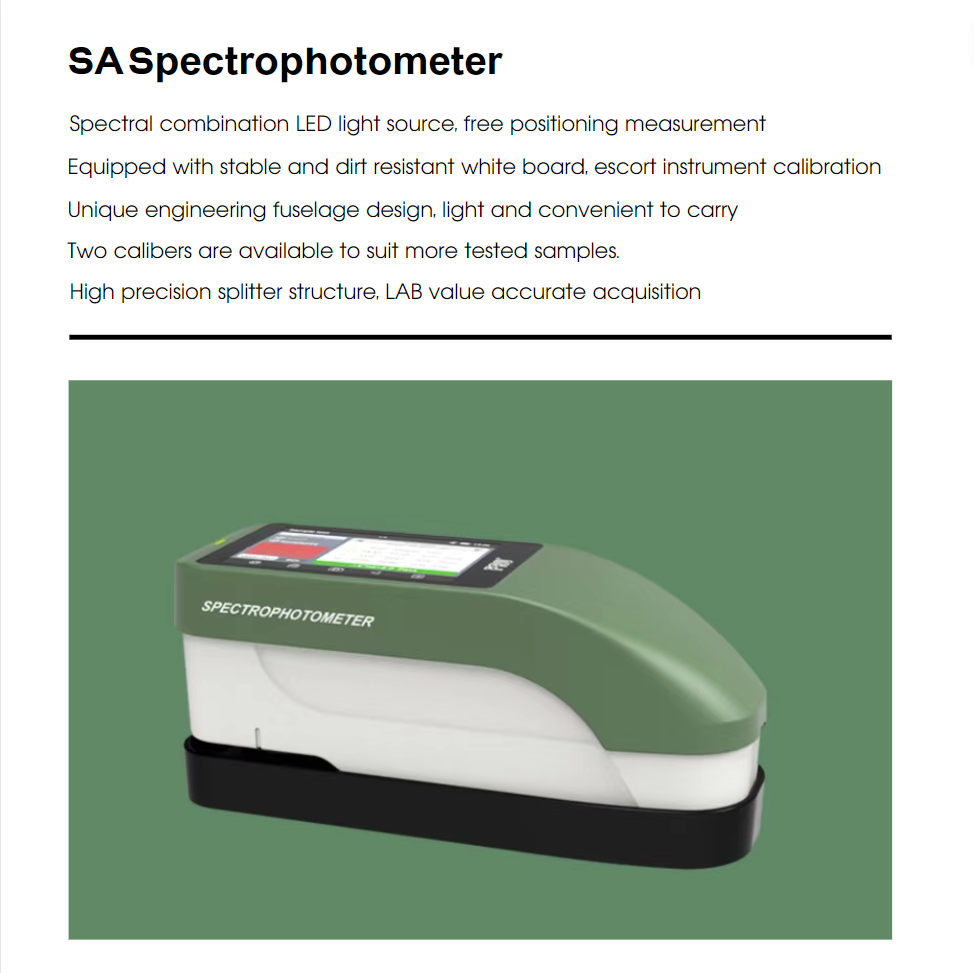

Spectrophotometer

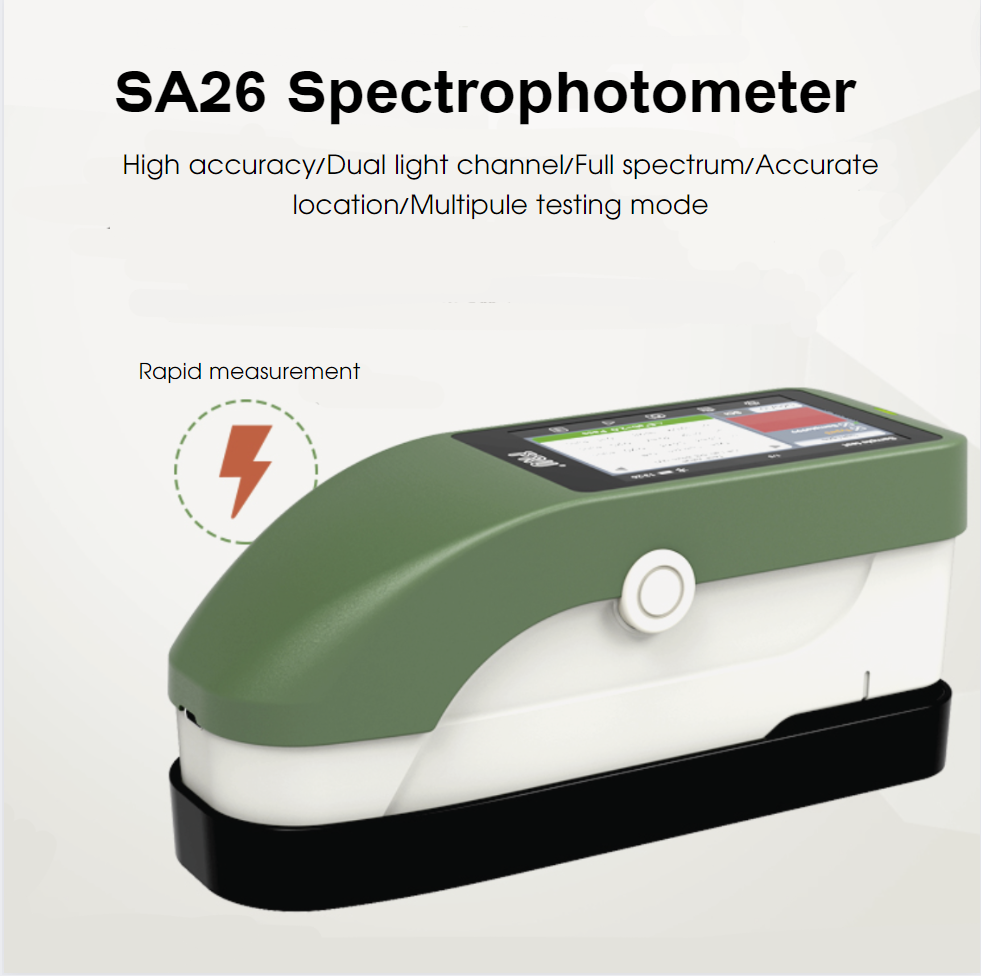

SA23,SA26 Spectrophotometer-Touch screen,most powerful

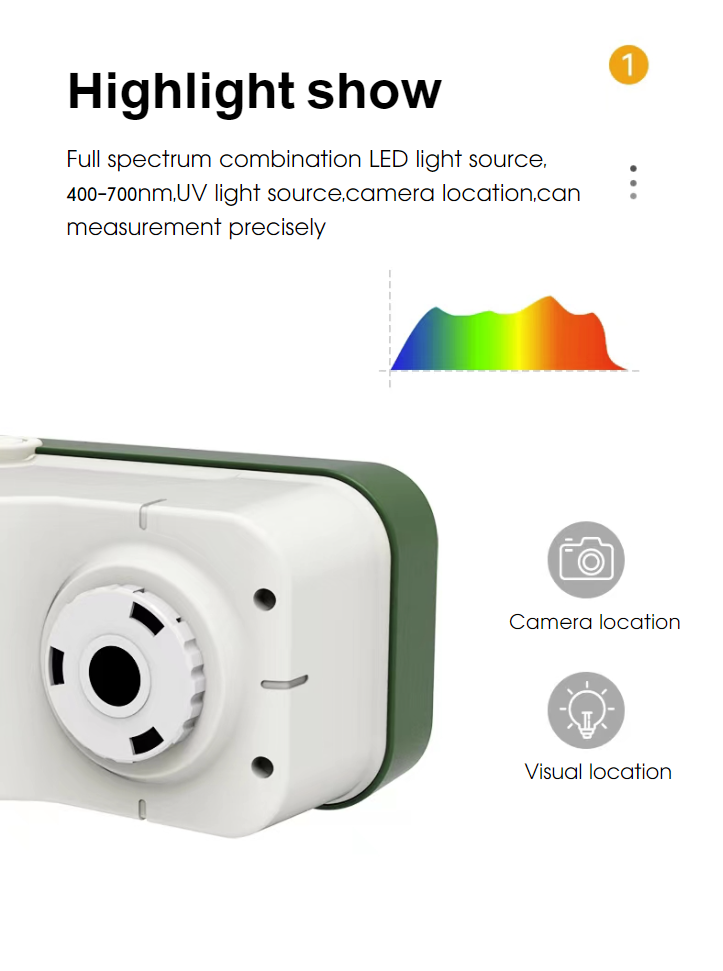

1.Spectral combination LED light source, free positioning measurement

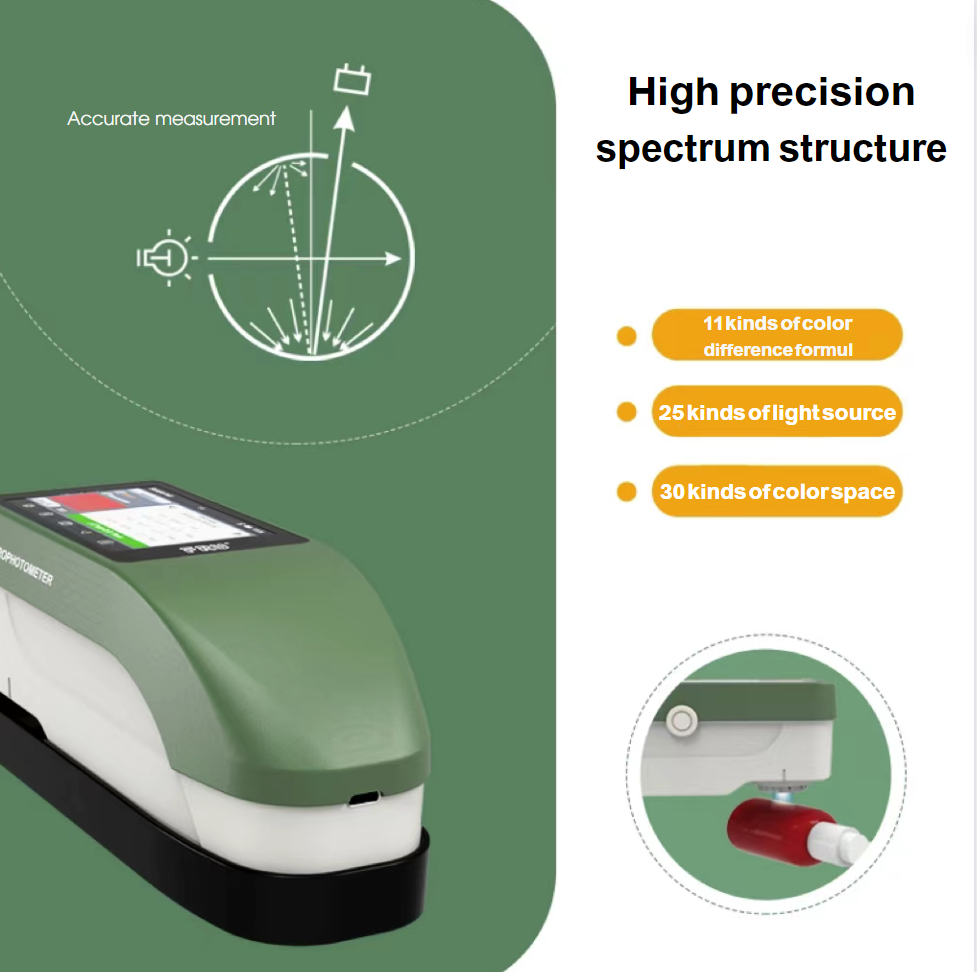

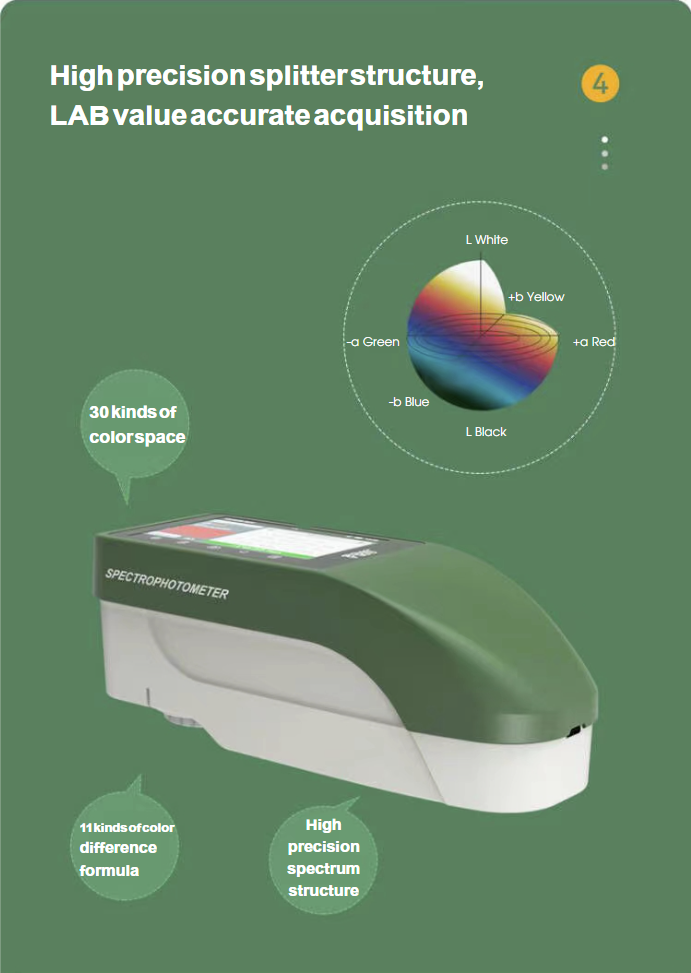

2.High precision splitter structure, LAB value accurate acquisition

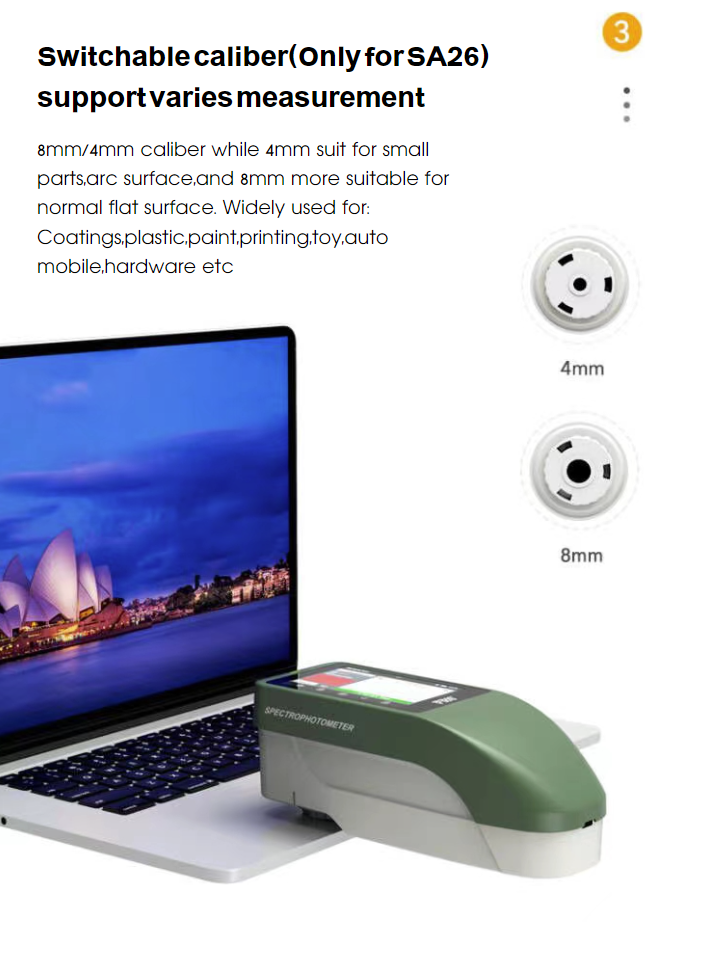

3.Two calibers are available to suit more tested samples.

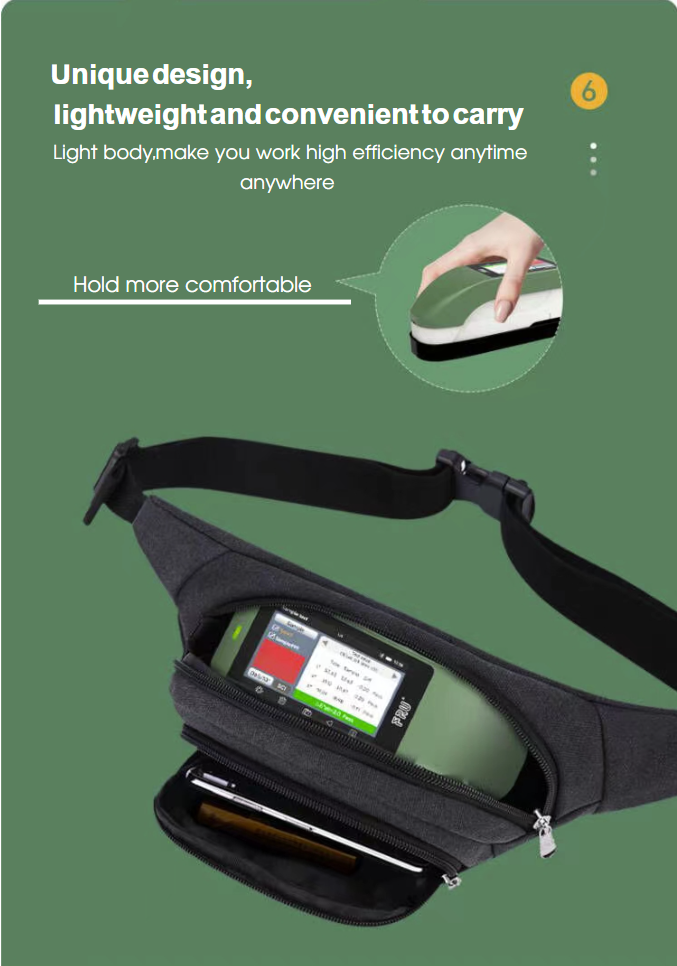

4.Unique engineering fuselage design, light and convenient to carry

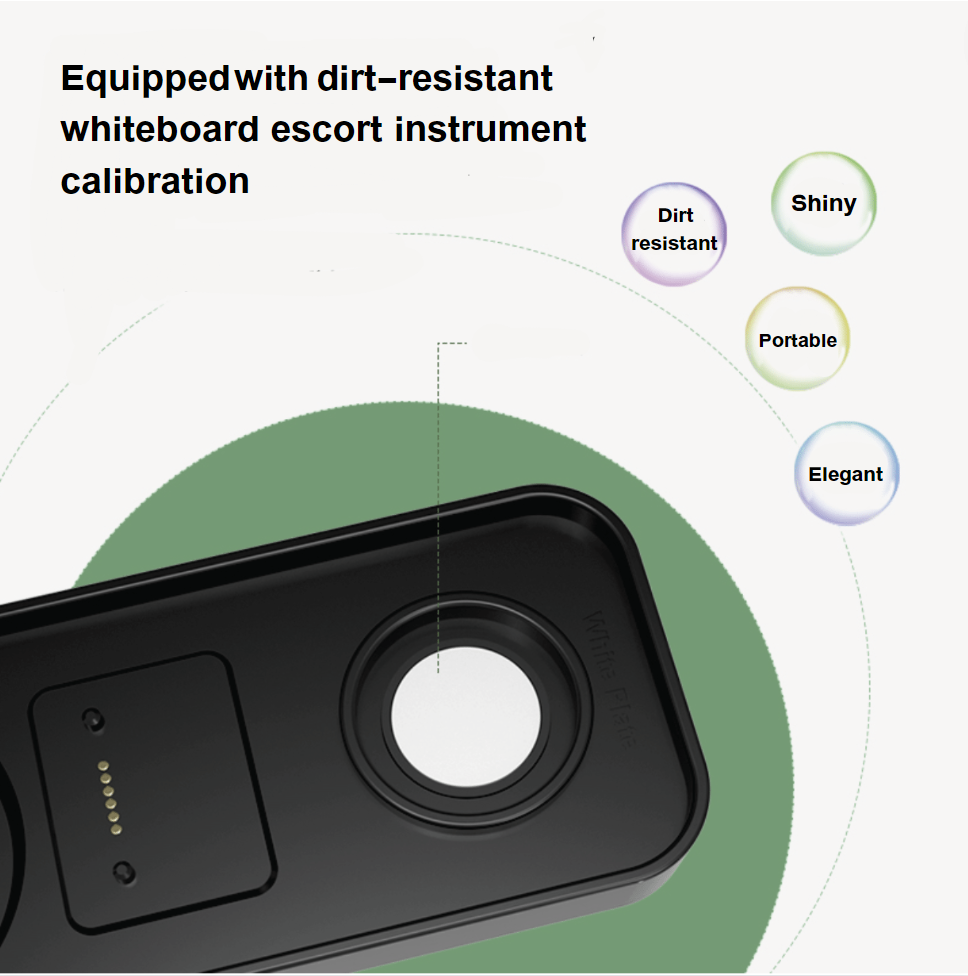

5.Equipped with stable and dirt resistant white board, escort instrument calibration
|
Model |
SA23-Basic version |
SA26-Professional version |
|
Caliber |
Single Caliber 4mm or 8mm |
Switchable caliber 4mm and 8mm |
|
SCI SCE |
SCI |
SCI and SCE |
|
Light type |
High accuracy full spectrum LED |
High accuracy full spectrum LED+Dual UV |
|
Fix position |
Visual |
Camera location |
|
Repeated Accuracy |
△E≤0.04 |
△E≤0.025 |
|
Color space |
CIE-Lab, CIE-LCh, Luv, Hunter-Lab, XYZ, Yxy, sRGB, DIN LAB99, CMYK (A/T/E/M/I) Field density, Munsell, Reflectance (bright vision), Blackness, YI yellow, Isochromatic spectrum (light jumping), hiding power, tint/strength/dye strength, Color fastness, Taube whiteness, Berger whiteness, Tappi whiteness, Cros whiteness, Stephansen whiteness, Ganz whiteness, Hunte r whiteness (ASTM), Whiteness (CIE), AATCC whiteness, R457/ISO2470 whiteness, GB/T17644 whiteness |
|
|
Color difference formula |
△E*ab、AE*ch、AE*uv、AE*HunterLab、AE*CMC(l:c)、AE*94、AE*00、AE*sR GB、AE*BFD、M*FCMII、AE*DIN99 |
|
|
Light source |
A、C、D50、D55、D65、D75、F1、F2、F3、F4、F5、F6、F7、F8、F9、F10、F11、F12、CWF、U30、U35、DLF、NBF、TL83、TL84 |
|
|
Observer |
10°(CIE1964) 2°(CIE1931) |
|
|
Wave length |
400-700nm 10nm interval |
|
|
Reflectivity |
Range: 0-200% Resolution: 0.01% |
|
|
Sensor |
CMOS sensor |
|
|
Geometric |
D/8 40mm integrating sphere |
|
|
Calibration |
Default: Automatic |
|
|
Display Resolution |
0.01 |
|
|
Table difference |
△E*ab≤0.25 |
|
|
Test speed |
1.0S |
|
|
Display |
3.5 inch full color capacitive touch screen |
|
|
Language |
简体中文,繁体中文,English |
|
|
Quality Control Software |
Polymer Li-ion battery 10000 times full charged |
|
|
Interface |
Type C Bluetooth |
|
|
App platform |
Andorid IOS Windows |
|
|
Storage |
8000 group Mass storage for APP |
|
|
Size: |
181x67x67mm (without base) |
|
|
N.W/G.W |
330g/1500g |
|
|
Packing list |
Instrument,calibrate base,type C charger,user manual,warranty card,single caliber |
Instrument,calibrate base,type C charger,user manual,warranty card,dual caliber |
