WN700D,WN700S Spectrophotometer
1、Storage
●Upon long time no use , cut off external power and remove the battery to avoid damage to the instrument resulting from battery fluid overflow.
●Store in a cool, dry environment with a temperature of -20 ° C ~ 50 ° C and a relative humidity of 85% or less.
2、Application
●Keep the standard whiteboard clean and avoid contamination of the standard whiteboard with stains, dust, etc.
●When using the instrument, the ambient temperature is 0 ° C ~ 40 ° C, the relative humidity is 85%, no condensation
●Avoid using the instrument in an environment with strong magnetic fields, severe vibration, dust, and smoke to prevent abnormal instrument data and performance failure.
●Avoid foreign matter such as liquid, powder, solid, etc. entering the inside of the instrument to prevent abnormal measurement data.

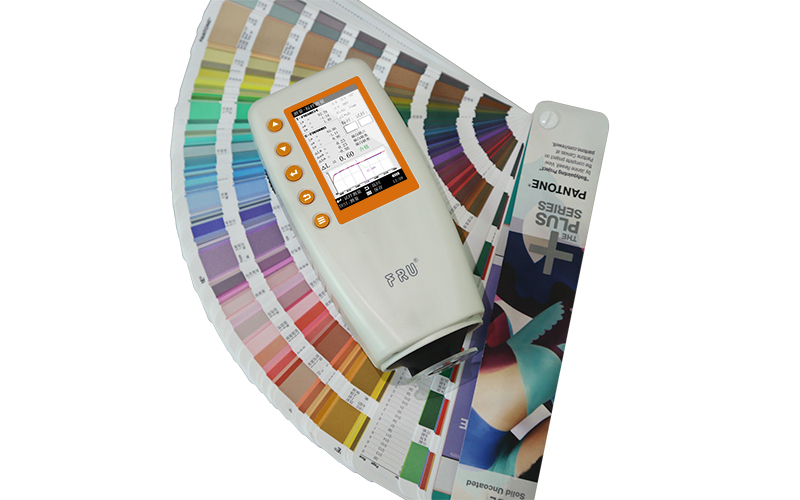

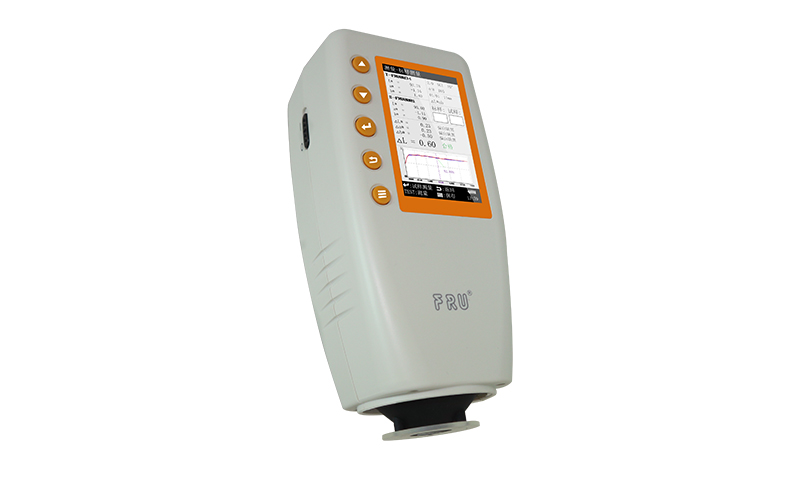

FRU Color Spectrophotometer - WN700D/WN700S
WN700D/WN700S are cost-effective and portable spectrophotometer designed by Shenzhen Wave Optoelectronics Technology Co., Ltd. These spectrophotometers adopt advanced electronic circuit system and perfect optical system, which has the advantages of high precision, good stability and strong anti-interference. It provides great reliability and convenience for color control in all walks of life.
____________________________________________________________________________________________________
Caliber Application
Facula 4mm(Caliber Φ6mm):Small and cambered surface.
Facula 8mm(Caliber Φ11mm) :Flat surface. Such as paint(WN700S is suitable for car paint), plastic,coating ,print, anodizing, ceramics, film, glass, pigment etc.
Caliber Φ16mm :Textured, Soft and Uneven surface. Such as Textile , fabric,Leather,Wooden sponge and hairpiece etc.
____________________________________________________________________________________________________
Core Advantage
1. Accurate spectral data and Lab values
Adopt high - precision spectroscopic system, accurately separate different wavelengths of light.
2. Full- featured and concise interface
An interface displays all the details, including color data, color simulation, measurement conditions, spectral curves, etc.
3. Multiple color space,Color difference formula,Light source
4. PC software extension
To analysis, upload, download, print and other functions of color data.
|
Model |
WN700D(Single Caliber) |
WN700S(Switchable Caliber) |
|
Geometric Conditions |
d/8 |
|
|
Color Space |
CIEL*a*b*、CIEL*C*h、Yxy |
CIEL*a*b*、CIEL*C*h、CIEL*u*v*、Hunter LAB、CIEXYZ、Yxy、Reflectivity、CMYK、YI Yellowness、Ganz、ISO Brightness(R457 Whiteness)、Taube Whiteness、z Whiteness、sRGB |
|
Standard Light Source |
A、C、D50、D65、F2（CWF）、F12(U30) |
A、C、D50、D55、D65、D75、F1、F2（CWF）、F3、F4、F5、F6、F7、F8、F9、F10、F11(TL84)、F12(U30) |
|
Light Source |
Combined LED |
|
|
Color Diff. Formula |
△E*ab、△E*Ch |
△E*ab、△E*Ch、△E*uv、 △E*Hunter、△E*cmc(2:1)、△E*cmc(1:1)、△E*94、△E*00、△E*sRGB、△E*BFD、△E*FMCII |
|
Measuring Caliber |
Facula 4mm(Caliber Φ6mm)、 Facula 8mm(Caliber Φ11mm)、Facula 16mm(Caliber Φ16mm) |
Switchable: Facula 4mm(Caliber Φ6mm)& Facula 8mm(Caliber Φ11mm) Single: Facula 16mm(Caliber Φ16mm) |
|
SCI/SCE |
SCI |
SCI/SCE |
|
Sensor Array |
Line array CMOS@256 pixels |
|
|
Spectral Way |
Concave diffraction grating |
|
|
Observer |
CIE10°(1964)、CIE2°(1931) |
|
|
Wavelength coverage |
400nm~700nm |
|
|
Wavelength interval |
10nm |
|
|
Measuring interval |
2.5 Second |
|
|
Reflectance range |
0%-200% |
|
|
Repeated accuracy |
△E＜0.07 （take the deviation average after 30 times measuring the whiteboard） |
△E＜0.05 （take the deviation average after 30 times measuring the whiteboard） |
|
Table Difference |
△E＜0.4(Measure the RAL 12-color blocks) |
△E＜0.3(Measure the RAL 12-color blocks) |
|
Light source life |
More than 50,000 hours |
|
|
Battery power |
Measuring more than 10000 times |
|
|
Display screen |
TFT true color 2.8inch@(16:9) |
|
|
Data storage capacity |
Storage Standard 100 groups |
|
|
|
Sample 16,000 groups |
|
|
Operating temperature |
0℃-40℃（32℉-104℉） |
|
|
Storage temperature |
-20℃-50℃（-4℉-122℉） |
|
|
Working humidity |
Relative humidity less than 85%,without condensation |
|
|
G.W |
1.5kgs |
1.5kgs |
|
Size of exterior package |
28*19*11cm |
28*19*11cm |
|
Standard accessories |
Power adapter, standard white board, standard black cavity, lithium battery, specification, PC software |
|
|
Optional accessories |
Software(Advanced Version), Micro printer, Locating block |
|
