Calibration Color Block

< >

Calibration Color Block

1.Smooth surface, Uniform color, High color saturation.

2.Stable optical and physical properties.

3.Cover full visible light ‘s spectral wavelength.

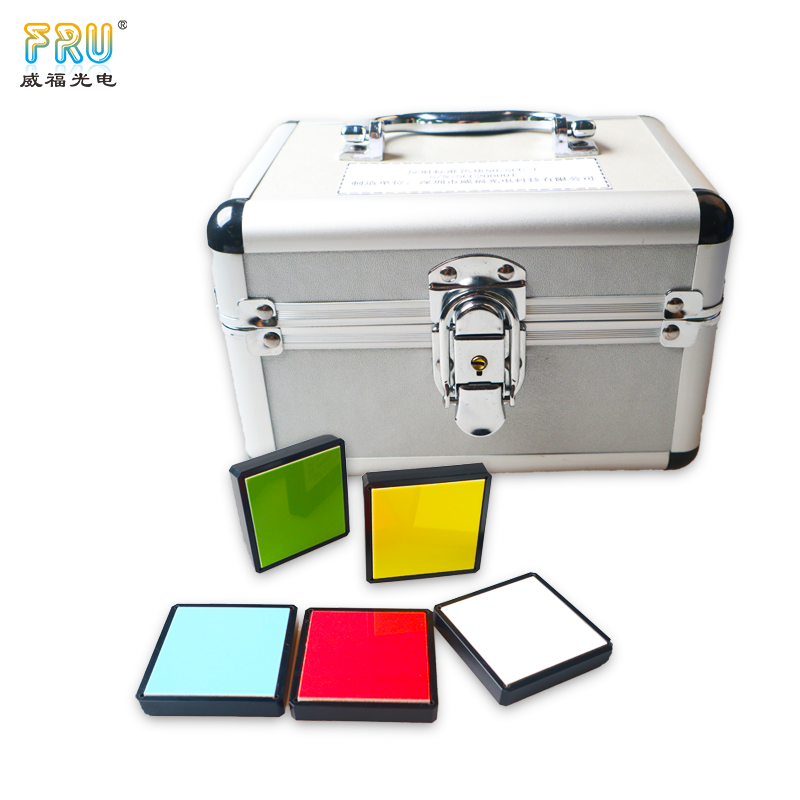

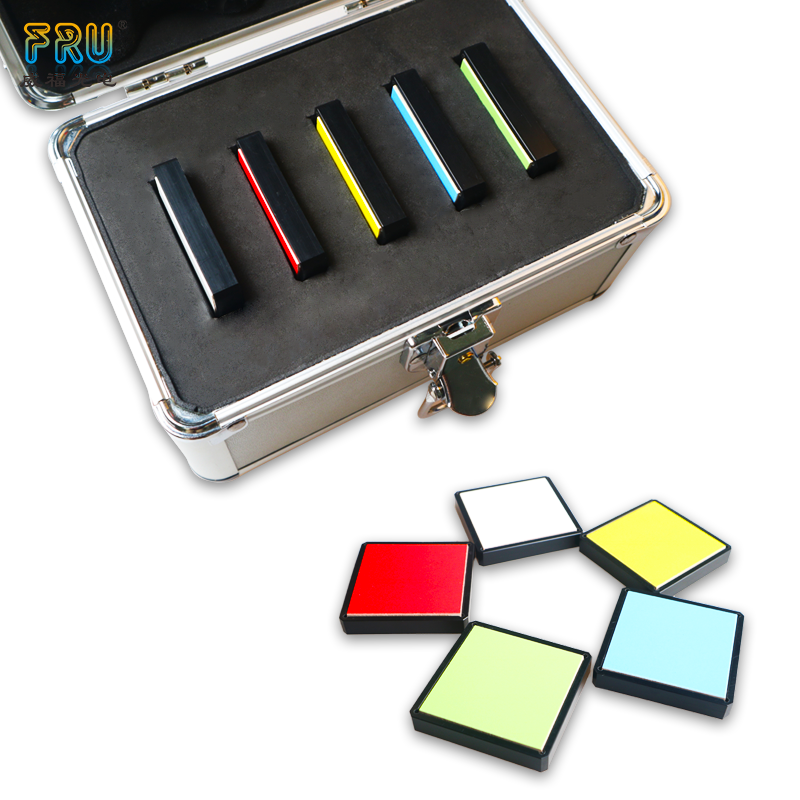

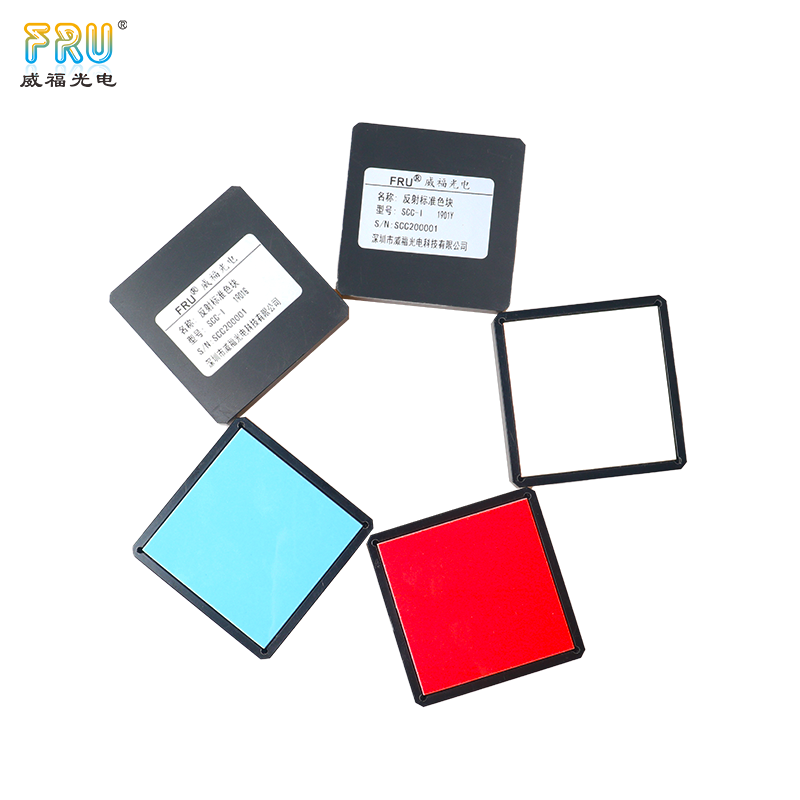

Standard Ceramic Color Block

Model :SCC-1 (Five block)

Introduction:

As the standard appliance in color measurement, this set is based on the chromaticity of three primary colors for the development. Using color glazed porcelain blocks after special fired processes.

Feature:

Smooth surface, Uniform color, High color saturation.

Stable optical and physical properties.

Cover full visible light ‘s spectral wavelength.

Specification:

1. Color coverage: Red, Yellow, Green, Blue, White. This set covers full spectral wavelengths of visible light(380nm~780nm).

2. Weather resistance:Manufacture of high temperature colored glaze. Better weather resistance, no cracking, no falling off. Stable color, Dx and Dy of each point are<0.001.

3. Optical property:Annual gradient Dx and Dy are<0.002 (National standard is<0.005). After one year's illumination test, the chroma value has no obvious change with has better illumination resistance.

4. Surface feature:Smooth surface, uniform color. Good surface hardness. Lighttight, no cracks, no wrinkles, no bubbles and other defects.

5. Dimension:50mm*50mm*10mm(each unit)

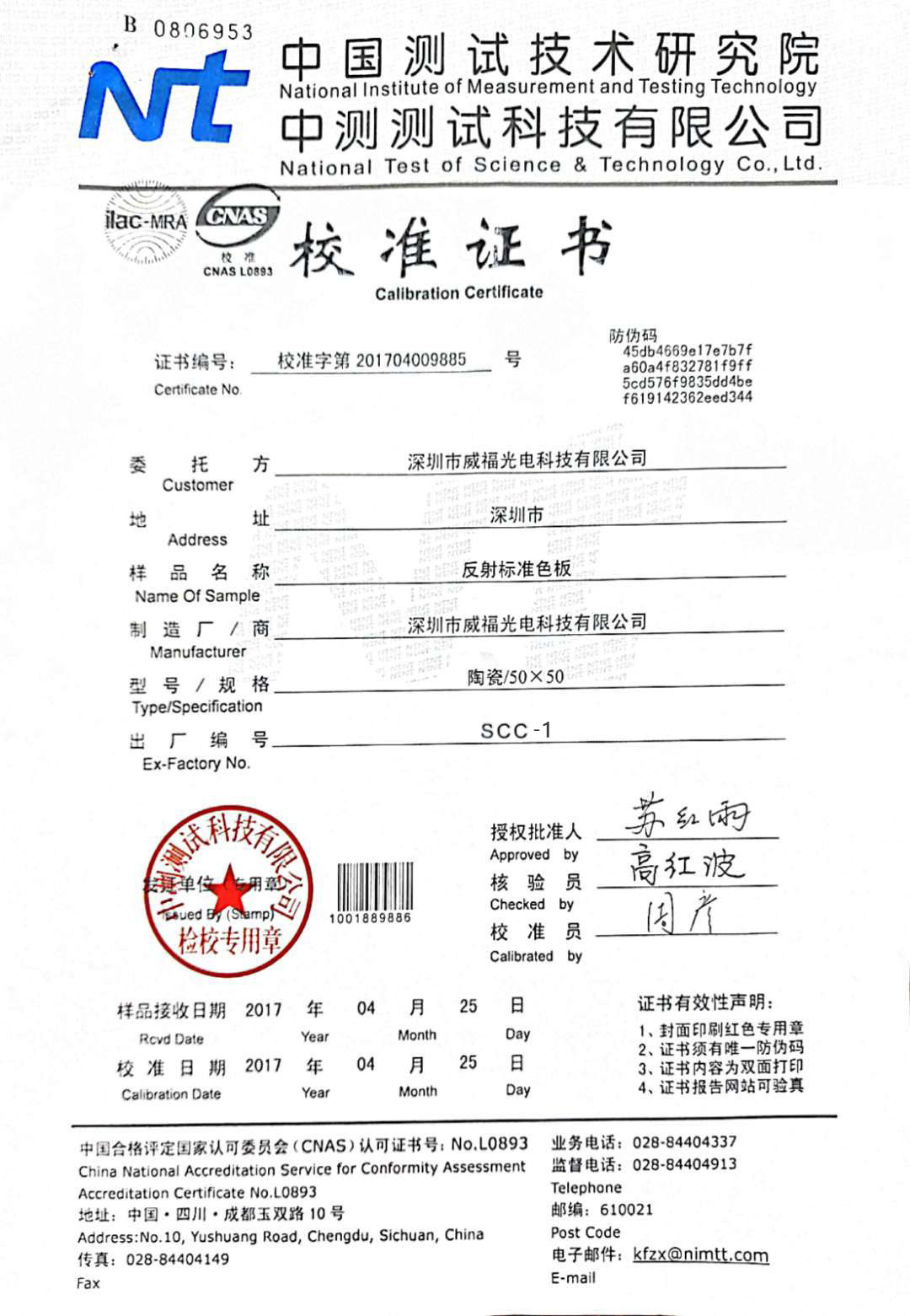

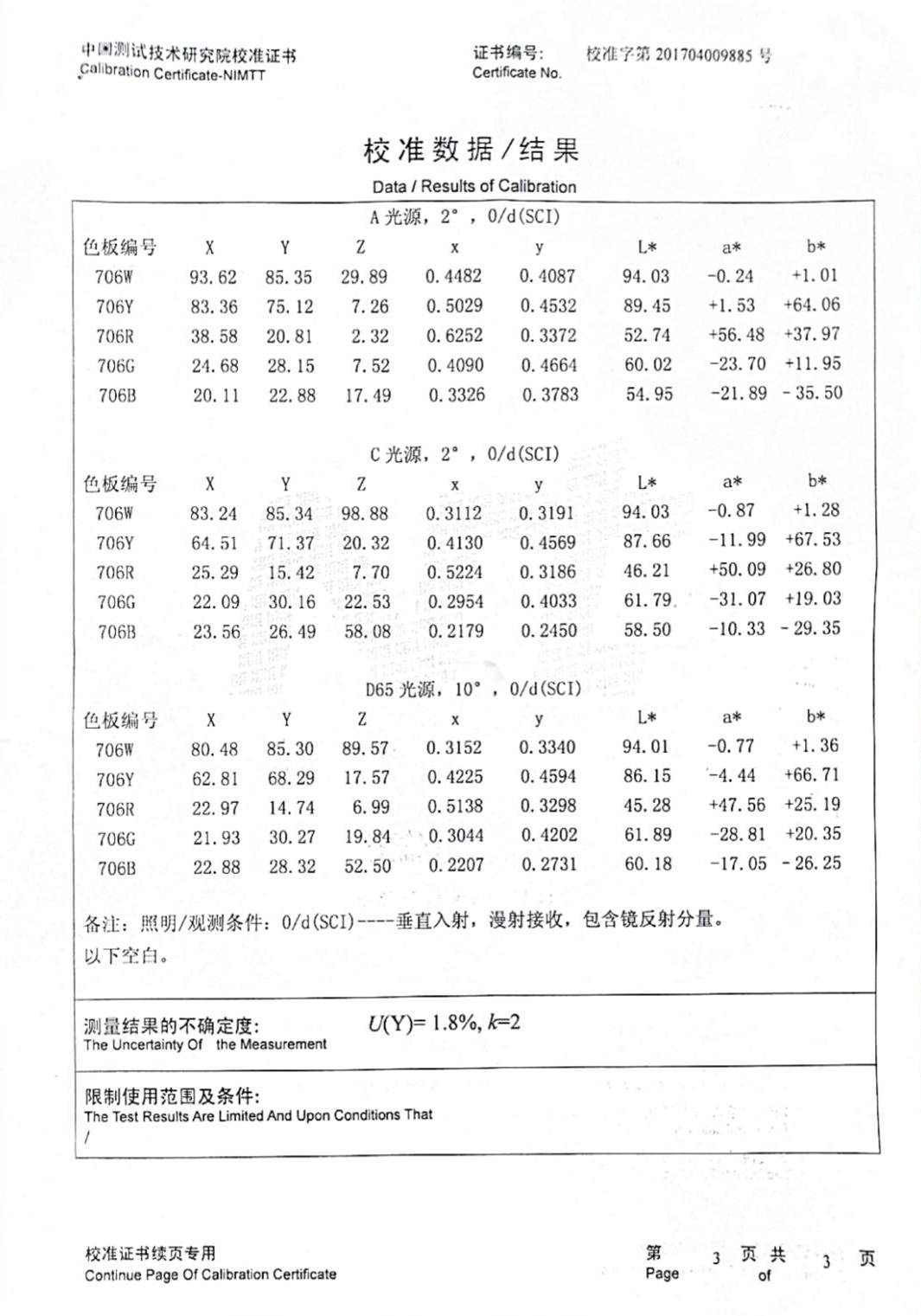

Certificate:
