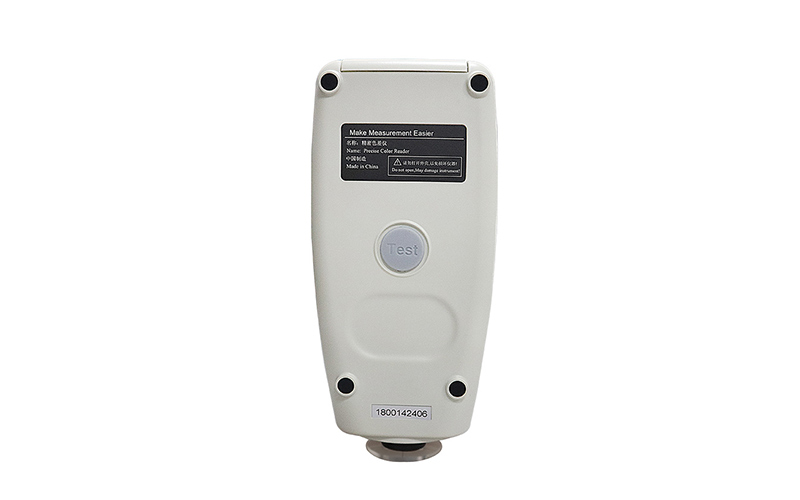

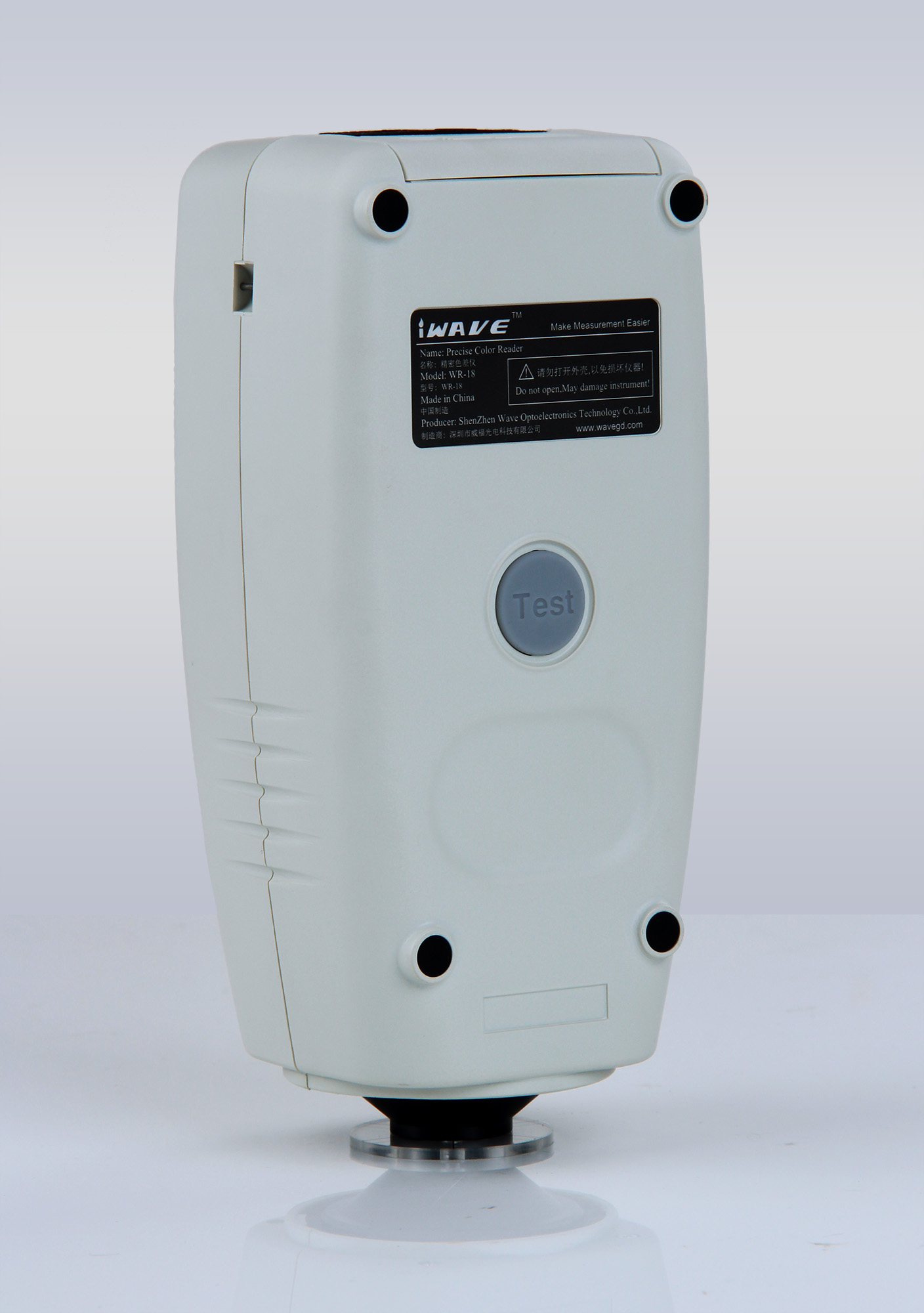

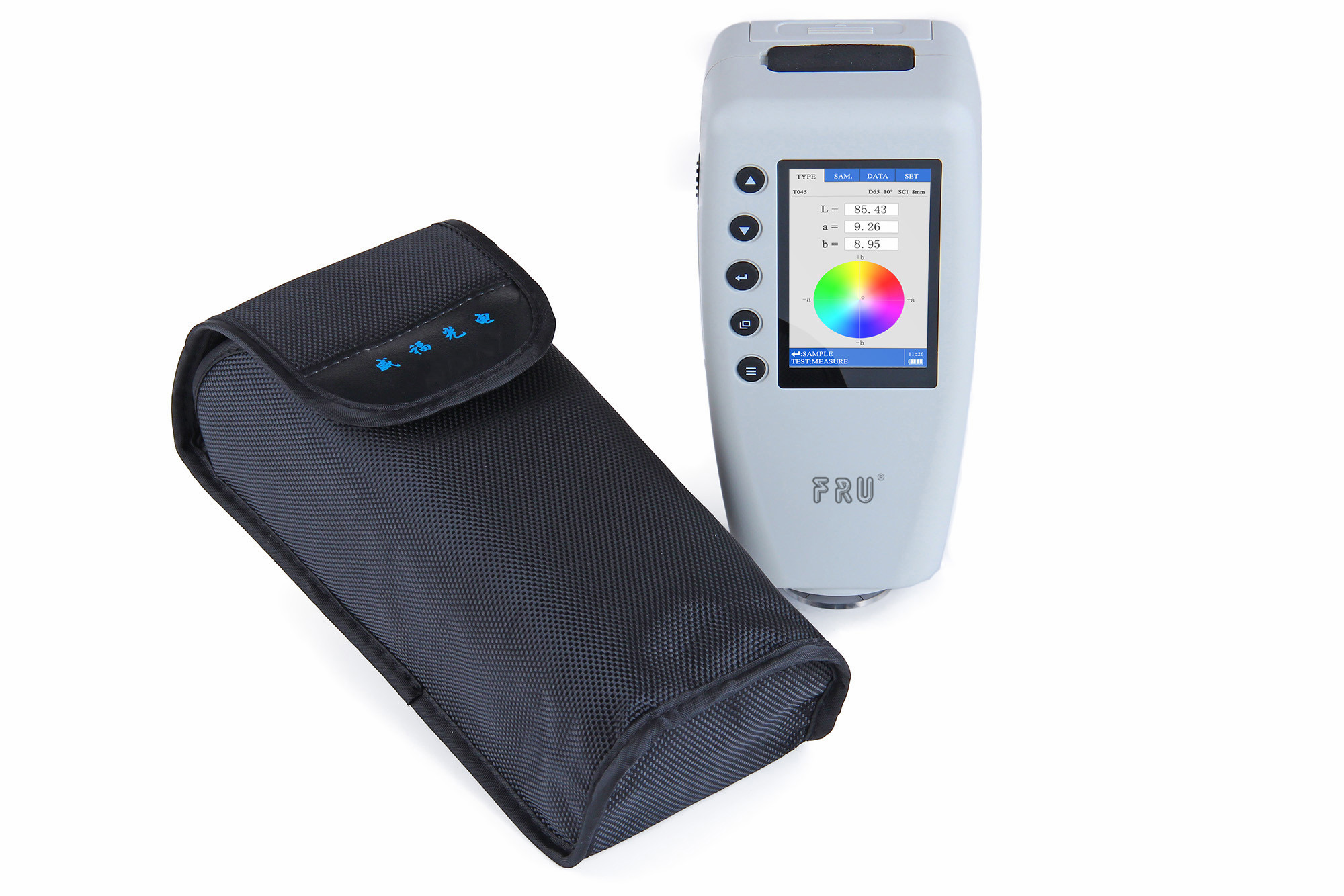

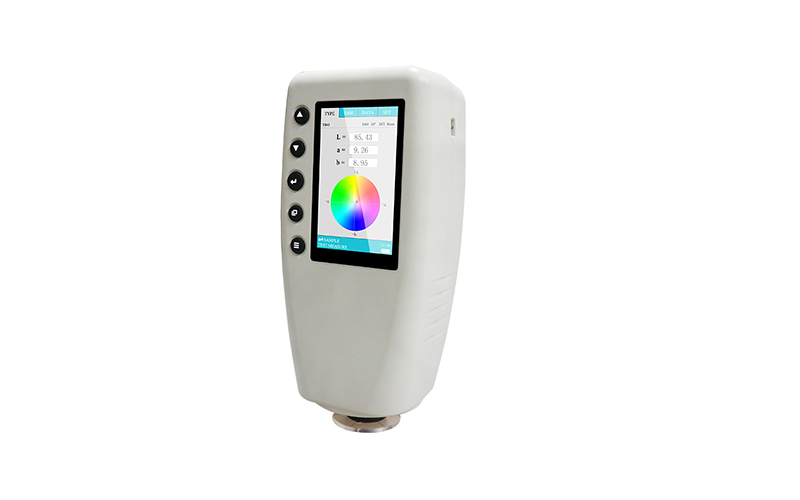

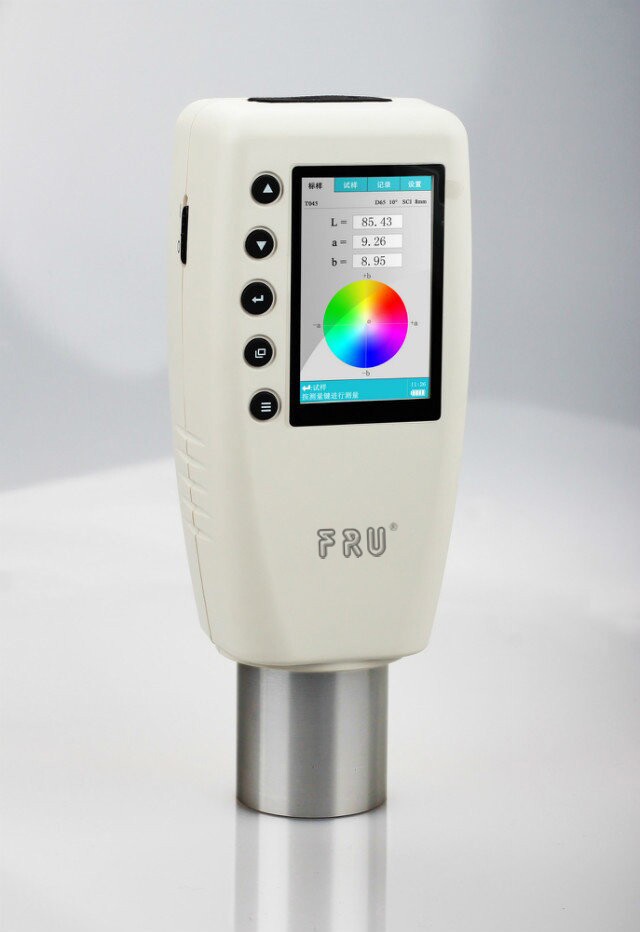

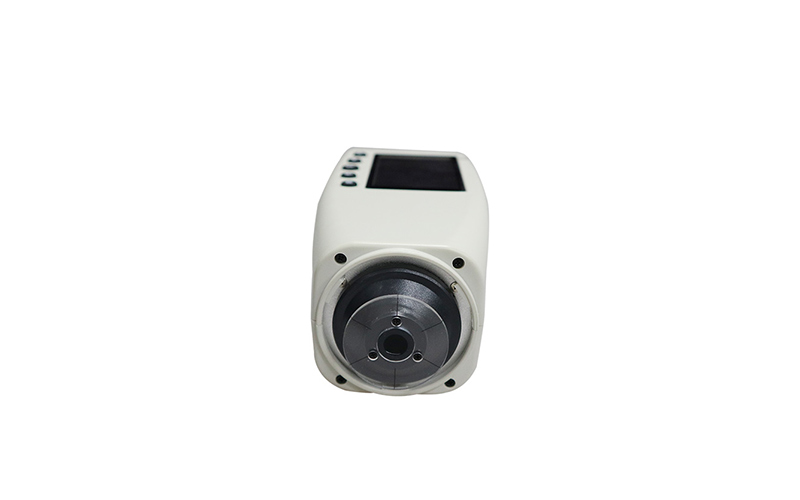

WR18 Colorimeter
1. WR18 can connect with PC, color analysis software is easy to display data and print test results etc.
2. WR18 is with 4mm, 8mm and biggest 40mm alternative aperture, to meet different surface measurement demands.
3. Convenient: automatic correction when starting up, no need to do calibration manually each time. (national patent).

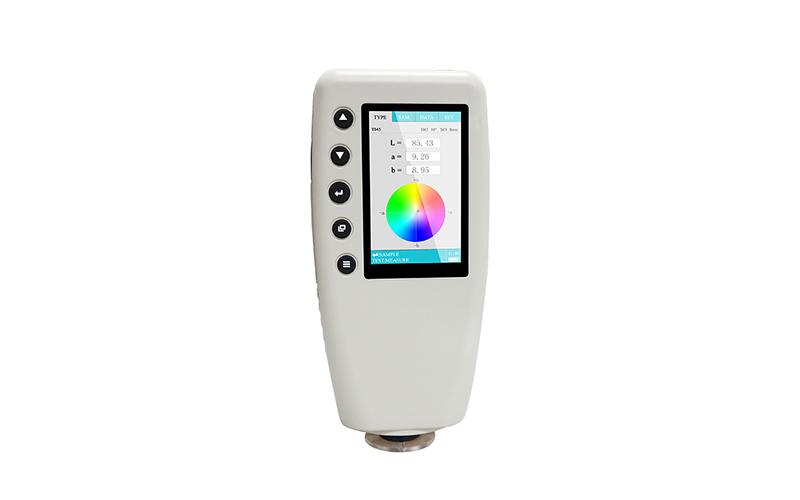

4. Comfortable: observation with real color screen display, handheld and exquisite.
5. Cost-efficient: good performance, stable measurement, low cost.
6. Configuration: rechargeable, high capacity lithium battery.
7. CE & RoHS certification.
Portable colorimeter WR18 can be applicable in textile, printing and dyeing, clothing, footwear, leather, chemicals, plastics, film, pigments, paints, inks, metal, toys, food medicine and other special industry for color quality control, color analysis, sample testing, production line testing.
Also extensive used in researching institution and laboratory. It can precisely measure kinds of color index in color space, help to analyze color matching freely and color management, with color analysis software, it will extend more functions
__________________________________________________________________________________________________________

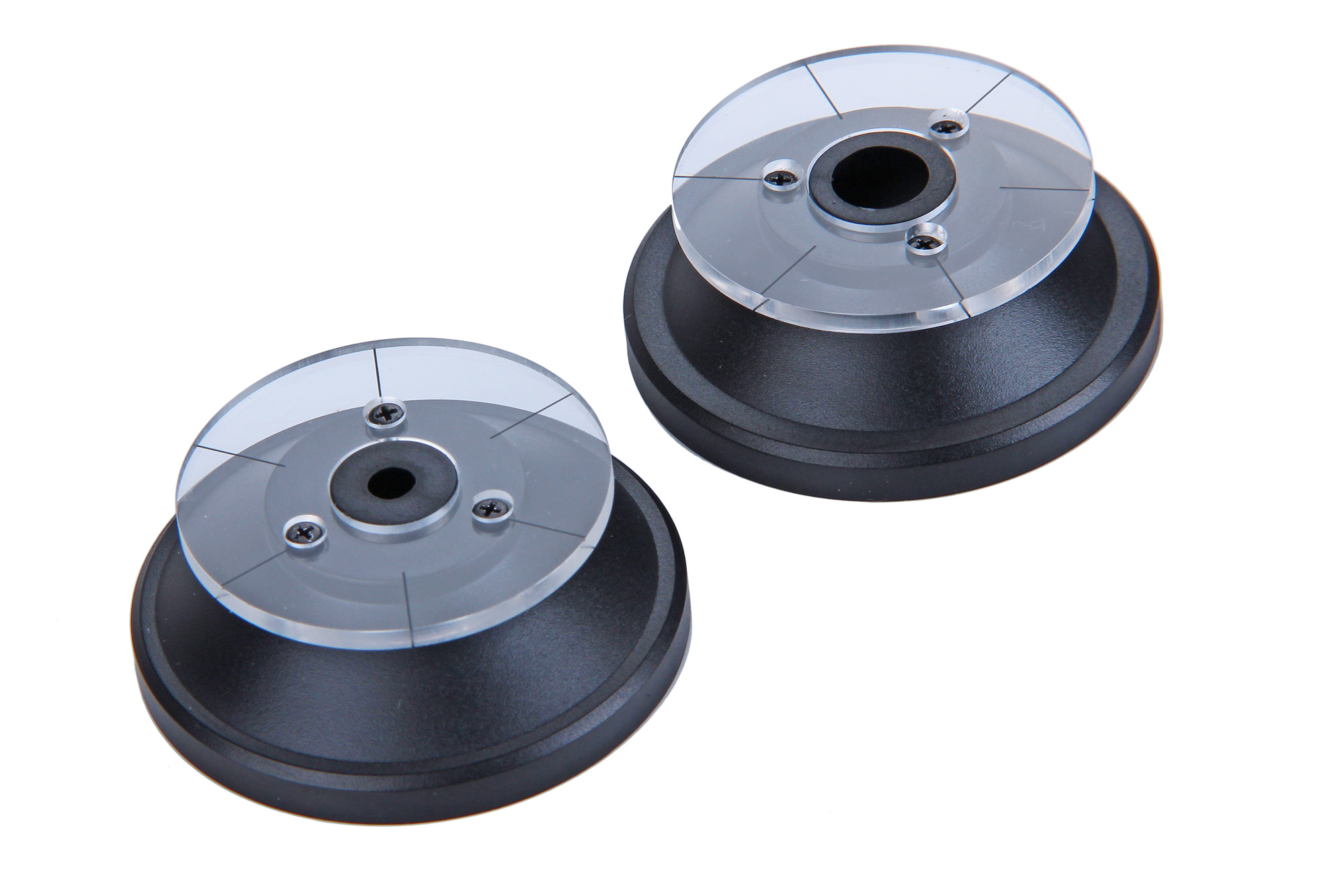

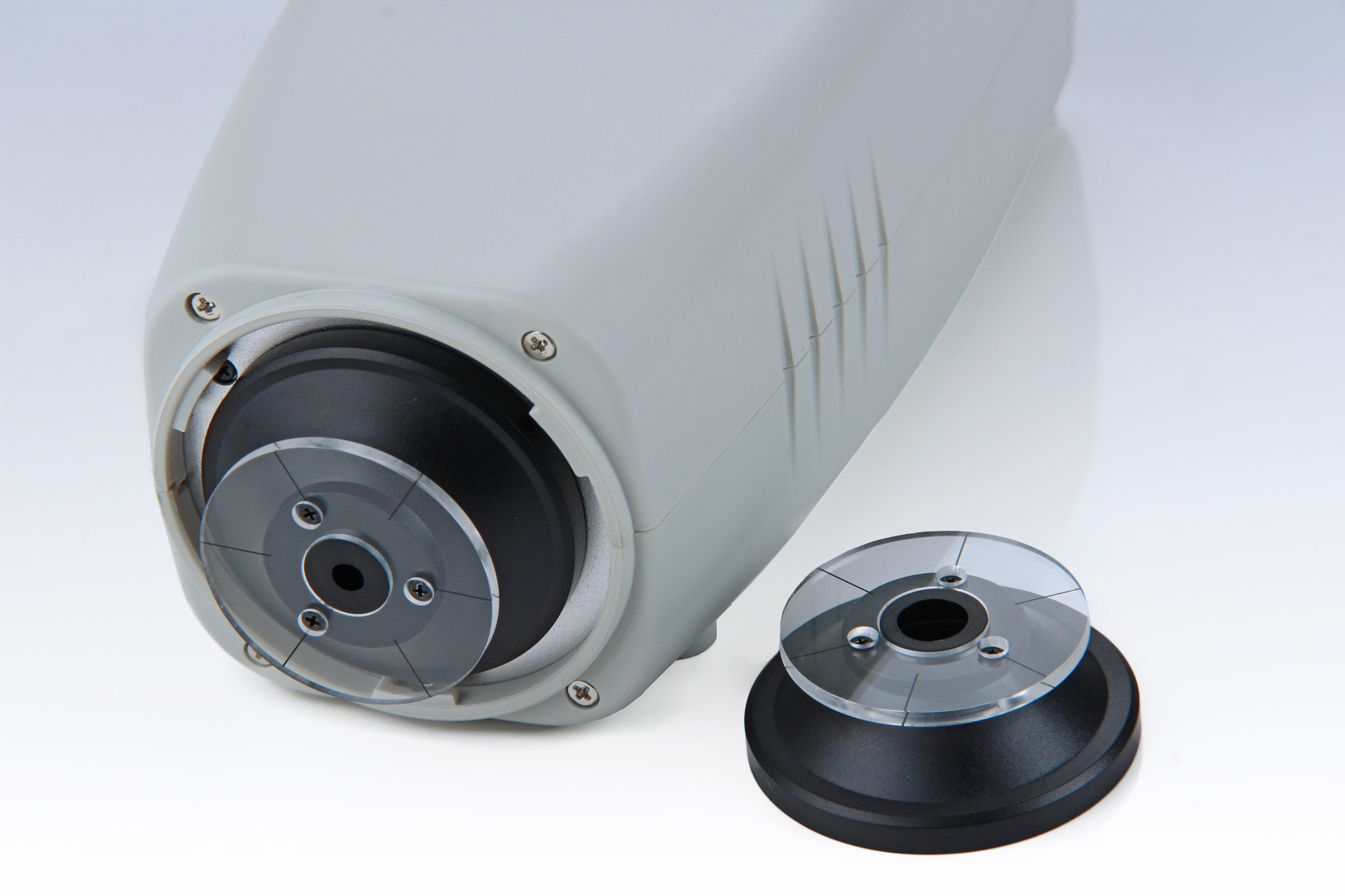

1.Caliber Application:
Caliber 4mm : Small area, cambered surface.
Caliber 8mm : Usual Flat surface materials. Such as plastic,Paint,Print ,Glass etc.

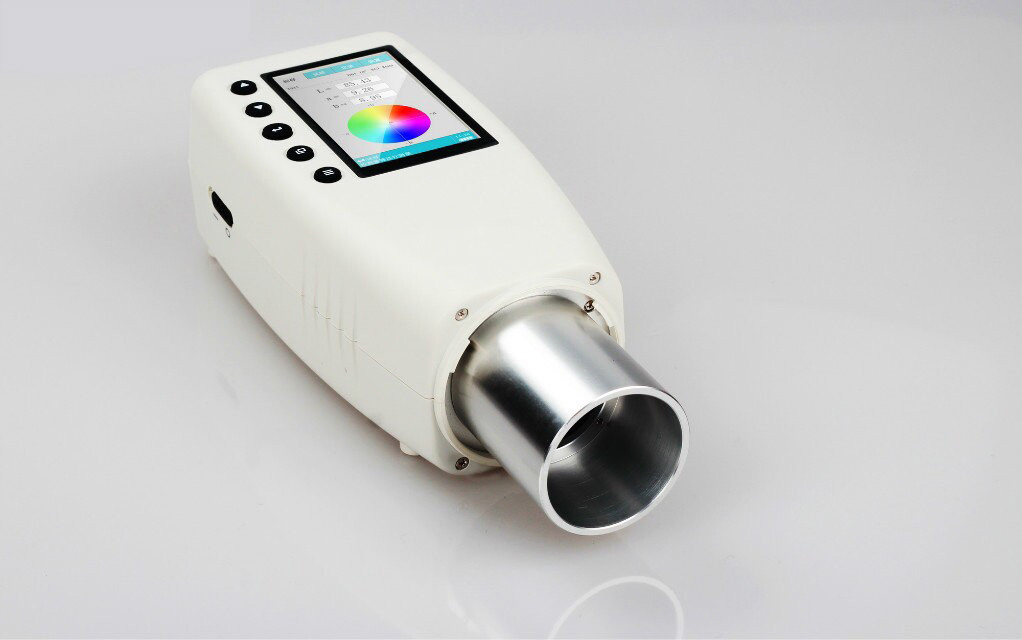

Caliber 40mm : Textured, pitted, rough, moist and hot products. Such as textiles, leather, wood, sponges ,meat etc.

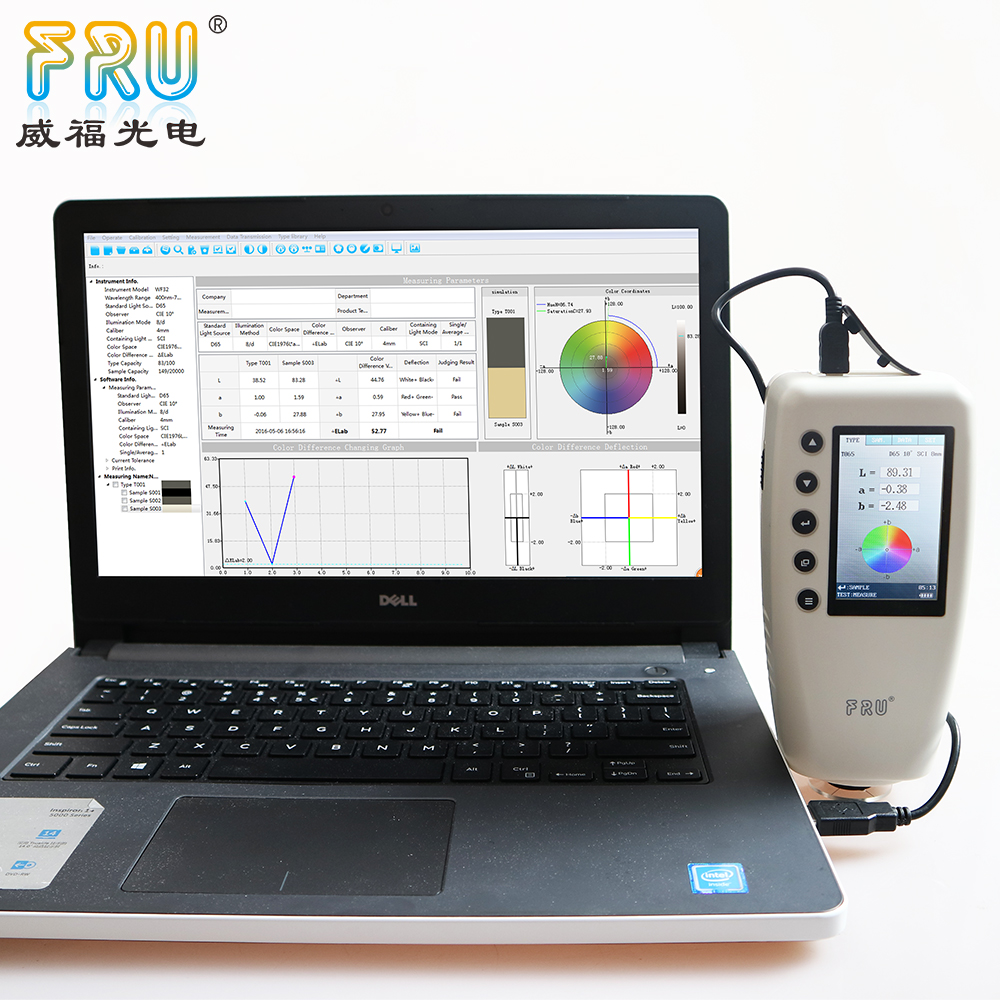

2. Software effect:
3.Certificates: CE/ROHS
|
Model |
WR-18 |
|
Color Space |
CIELAB CIELCH CIEXYZ sRGB |
|
Color Difference Formula |
△E*ab △E*LCH |
|
Measurement Caliber |
Φ40mm/φ8mm/φ4mm Alternative |
|
Illumination Condition |
CIE Recommendation：8/d |
|
Light Source |
D65 A F(CWF) |
|
Sensor |
Photodiode array |
|
Observer |
CIE 10° Standard observer |
|
Measurement Range |
L: 0 to 100 |
|
Repeated Accuracy |
△E<0.06 |
|
Table Difference |
△E<0.2 |
|
Measurement Interval |
0.5 Sec. |
|
Storage Capacity |
Type sample data : 100 groups with testing sample data: 200 groups |
|
Lifetime of Bulb |
5 years more than 1.6 million measurements |
|
Display Screen |
TFT true color 2.8inch@(16:9) |
|
Language |
English/Simplified Chinese |
|
Interface of External |
USB2.0 (USB-B) RS-232 (115200bps) |
|
Working Temperature Range |
0℃-40℃（32℉-104℉） |
|
Storage Temperature Range |
-20℃-50℃（-4℉-122℉） |
|
Humidity Range |
Relative humidity less than 85%,without condensation |
|
Weight |
700g |
|
Size |
199*68*90mm |
|
Package Size |
400*240*340mm |
|
Battery Charging Time |
8 hrs |
|
Battery |
Li-ion battery, 5000 times Measurement |
|

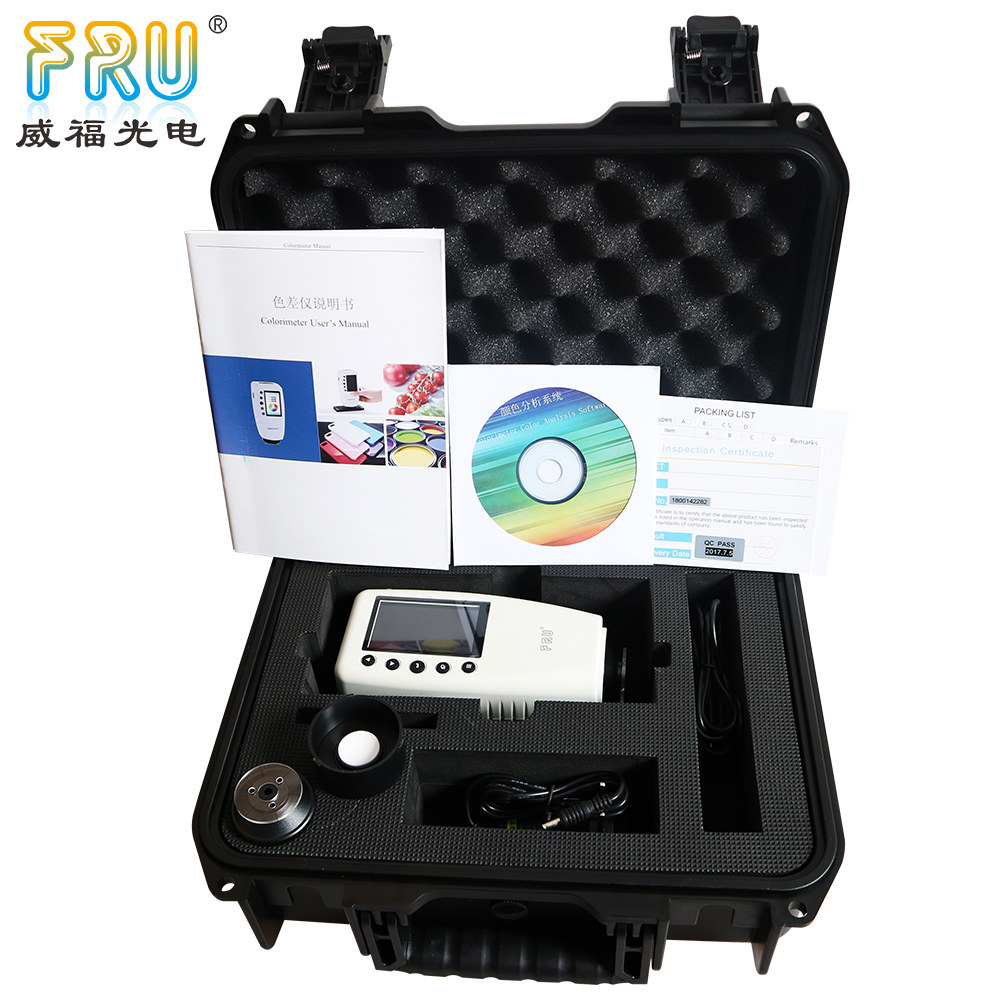

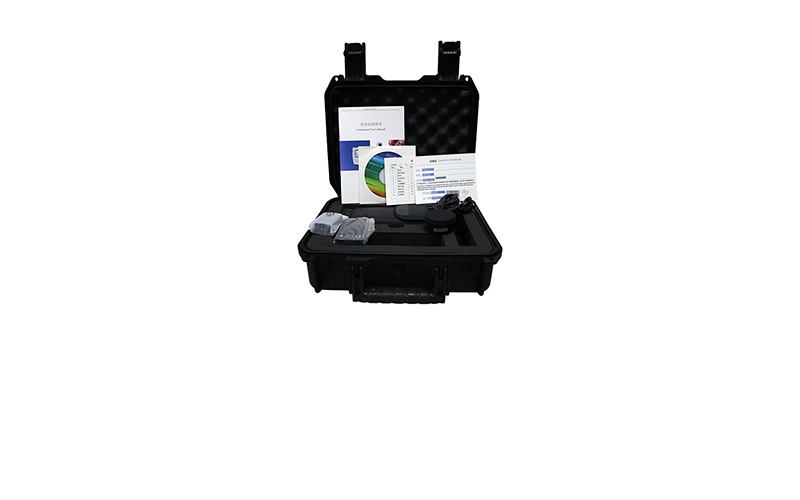

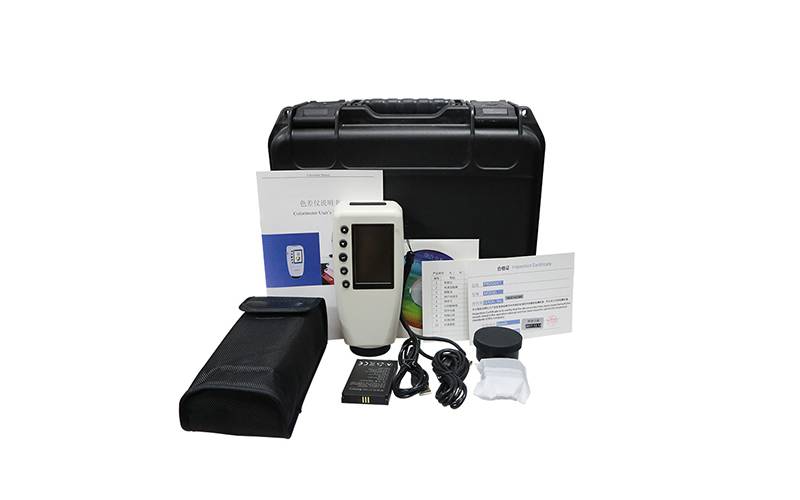

Standard Accessories |
AC adapter/ 3000mAH Li-ion battery/User manual/Warranty card./USB data line/ Color-analysis software |
|
Optional Accessories |
Flour measuring device/Micro printer |
