WF30,WF32 Colorimeter
1、The instrument is well designed and features in precision, stability, easy handling, easy to learn and cost-effective.
2、The instrument applies to the color quality control, color difference control, color difference analysis, sampling testing and online testing for industries as textile, printing and dyeing, garments, shoes, leather, chemical, plastic, pigment, paint, ink, printing, metal, photography and toys etc.
The WF32 Colorimeter is a professional colorimeter designed and produced subject to the relevant standards of International Commission on Illumination (CIE) and national stands. Being with brand new imported key components, the instrument is well designed and features in precision, stability, easy handling, easy to learn and cost-effective.

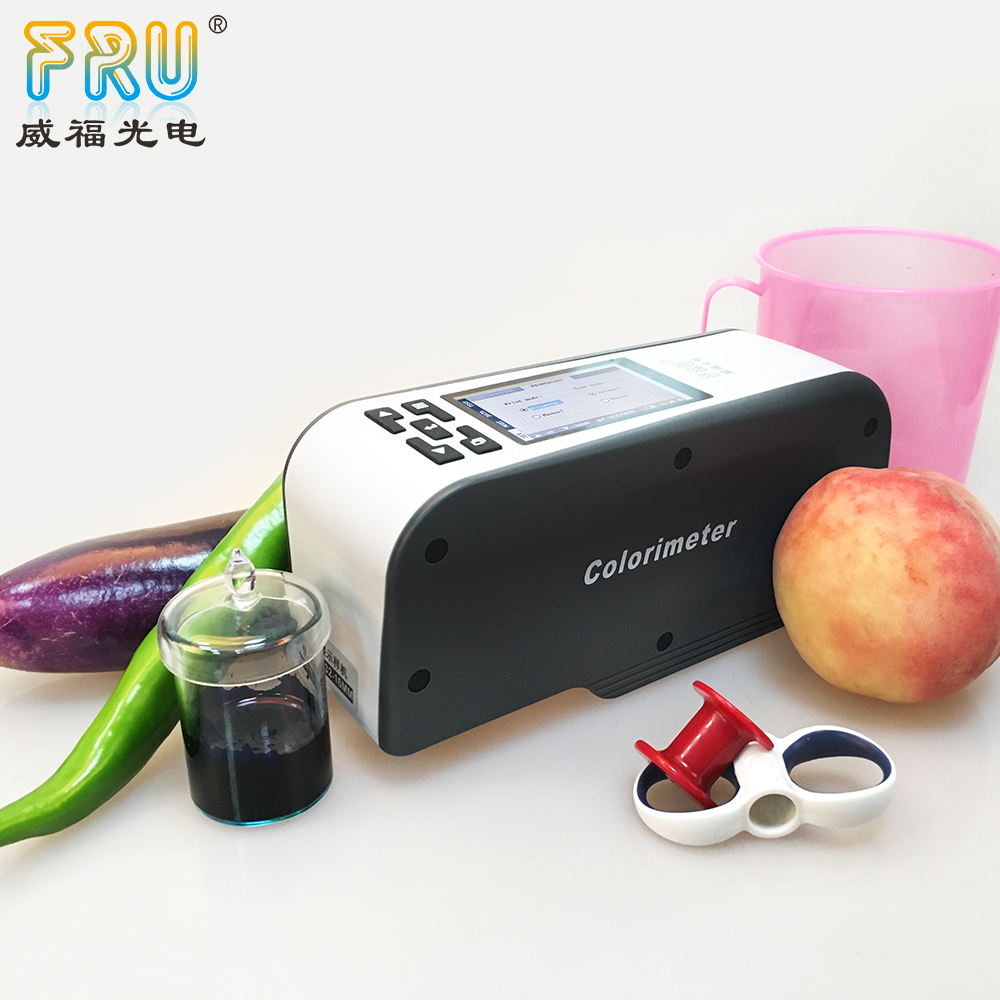

The instrument applies to the color quality control, color difference control, color difference analysis, sampling testing and online testing for industries as textile, printing and dyeing, garments, shoes, leather, chemical, plastic, pigment, paint, ink, printing, metal, photography and toys etc., as well as to the auxiliary color matching during the processes as injection, inking, painting and spraying coating etc.

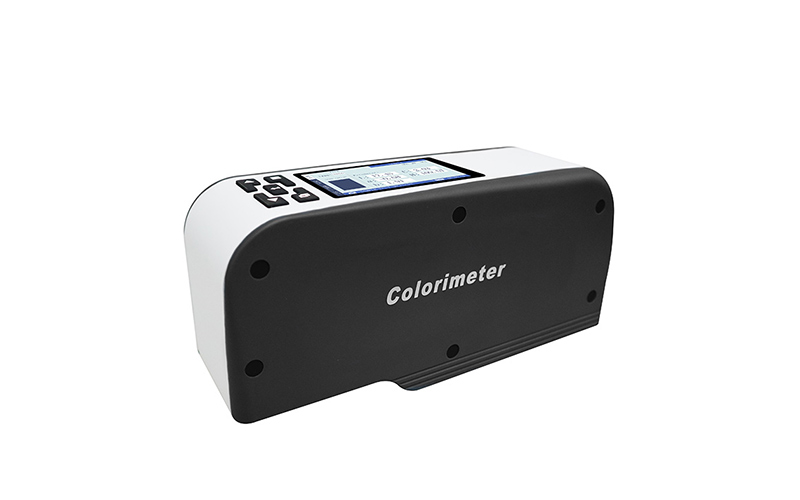

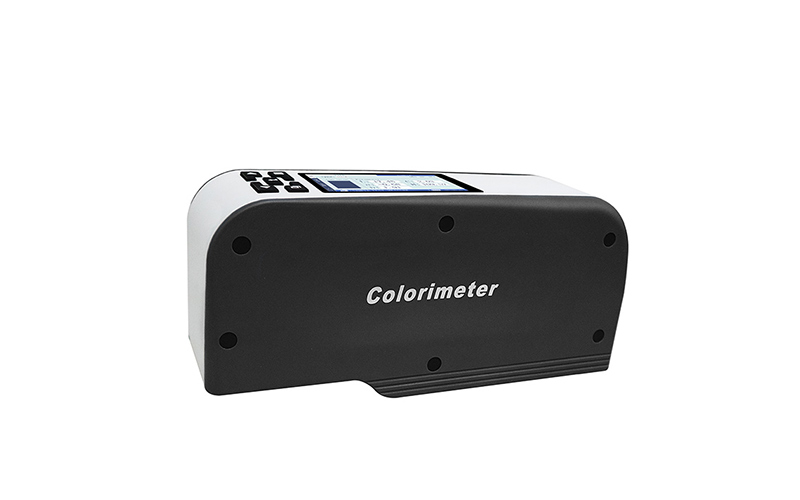

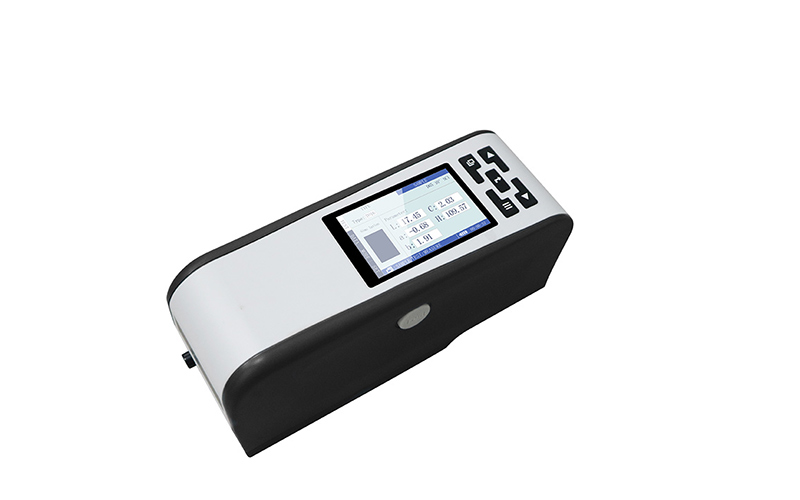

Precise Colorimeter WF32
*High repeatability<0.03 *Manual black and white calibration *Detect yellowness and whiteness
* Color simulation Show *6 kinds of color space *8 kinds of formula *8 kinds of light resource
1.Aperture (caliber) Application:
Caliber 4mm : Small area, cambered surface. Great convenience to measure small devices, small parts and special type of arc.
Caliber 8mm : Usual Flat surface materials. Great convenience and trustworthy reliability for its versatility, tiny table difference, and stability.

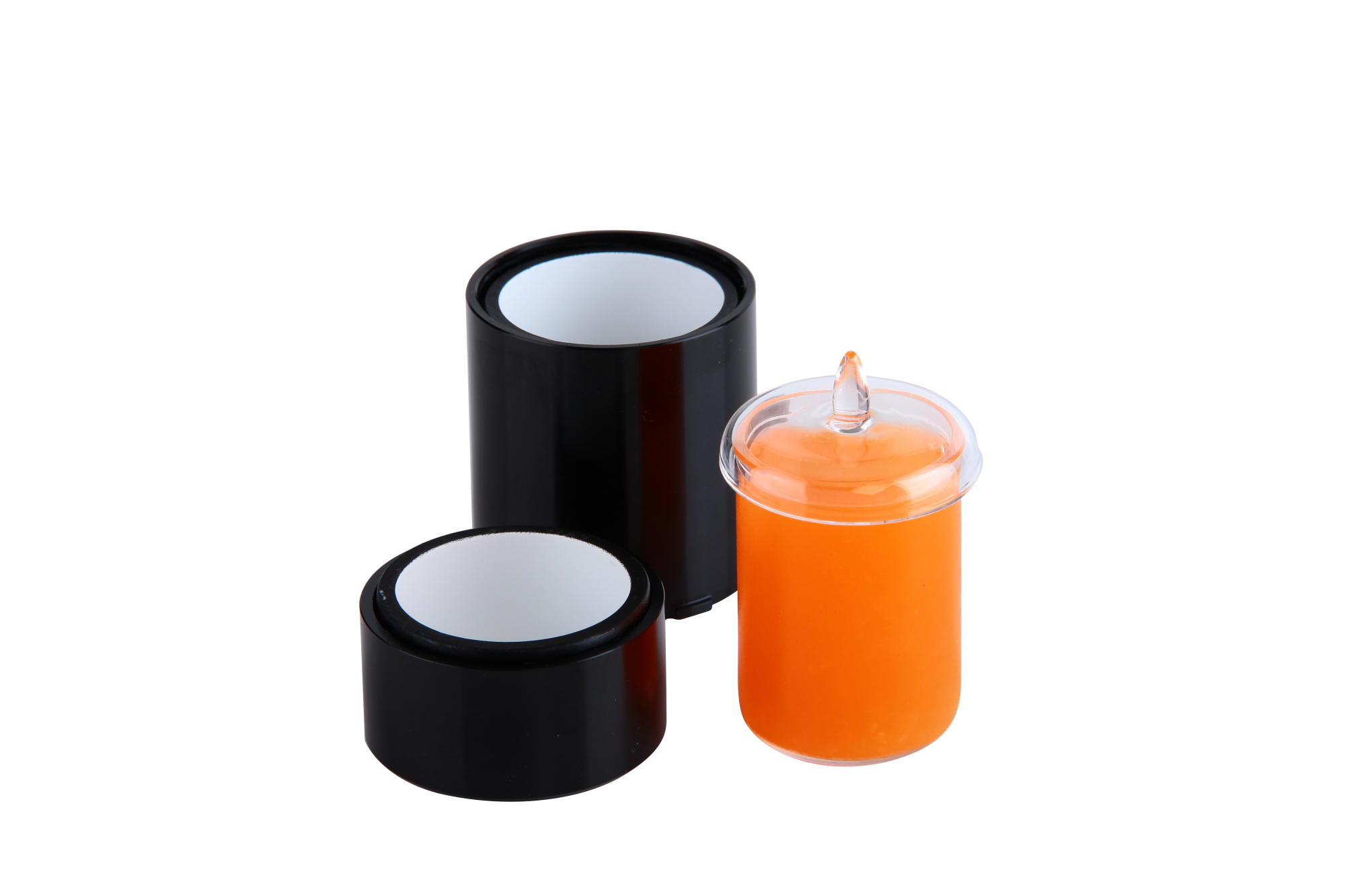

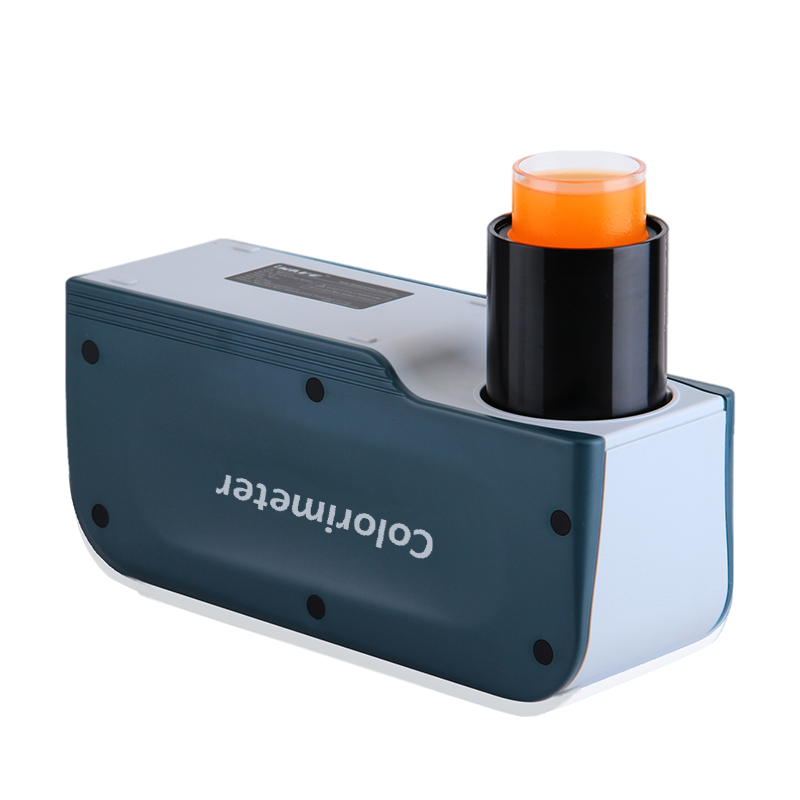

Caliber 16mm : Textured object, pitting, grainy surface or relatively large size, flexible , soft, wet samples, and Powder, Liquid, Granule, Pulp etc.

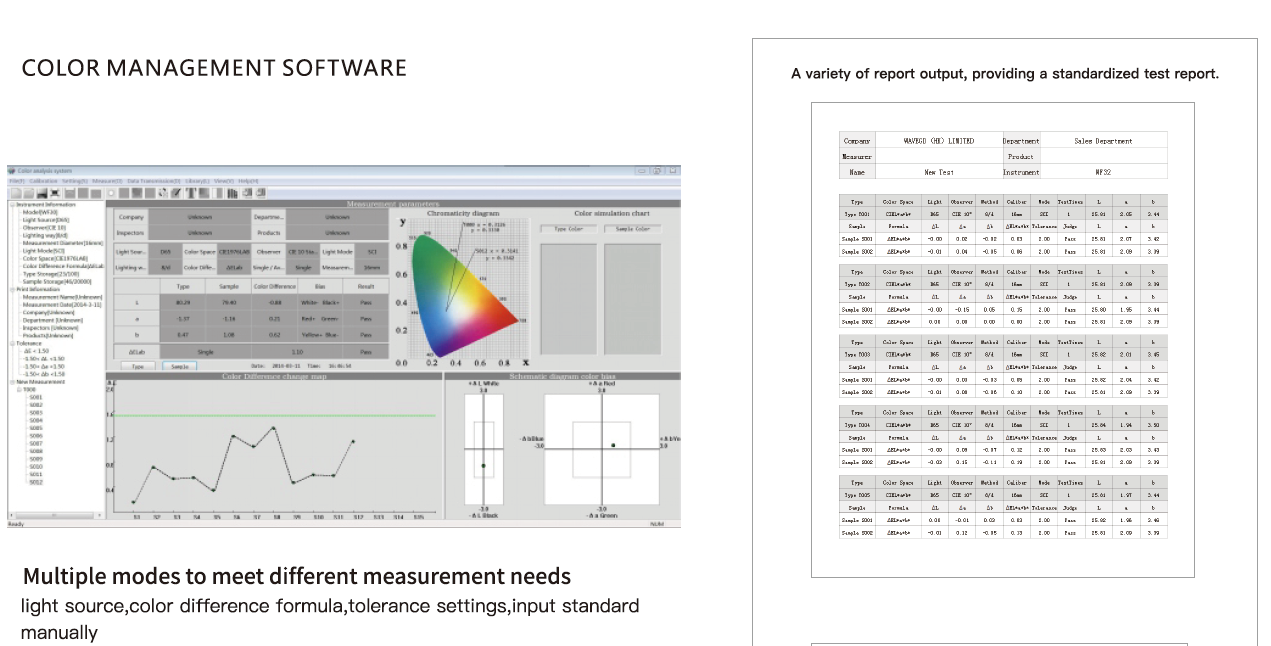

2. Software Effect:

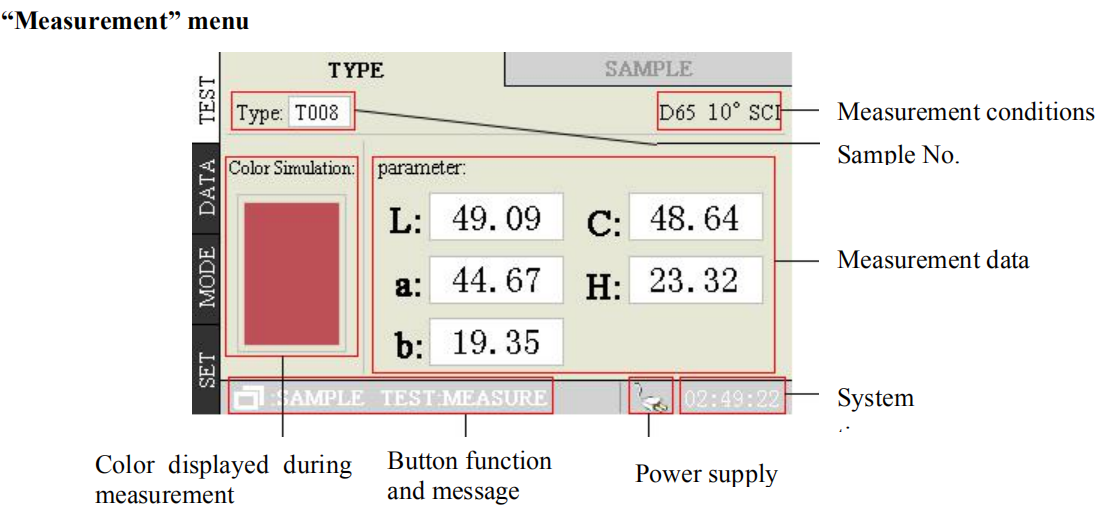

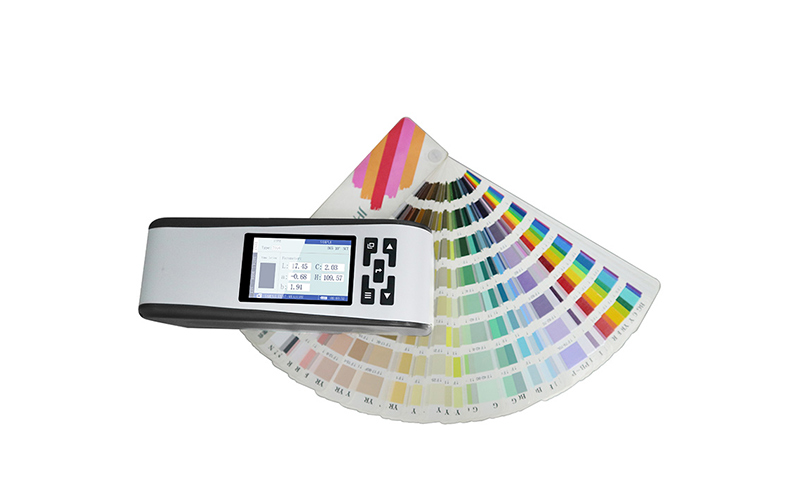

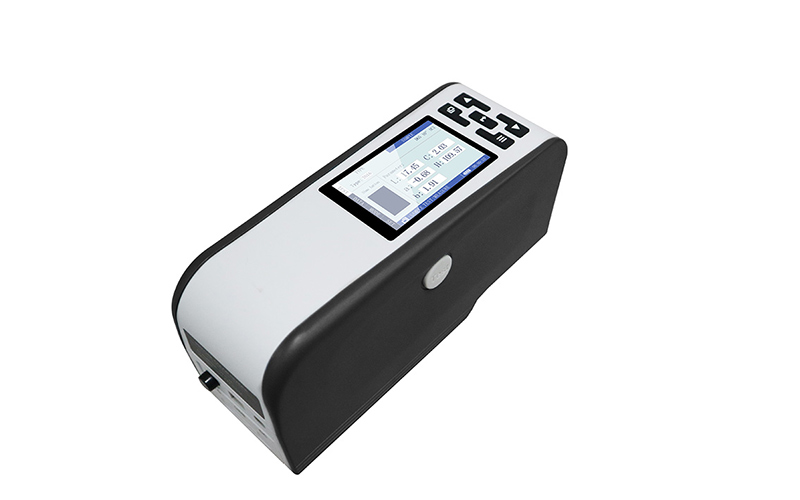

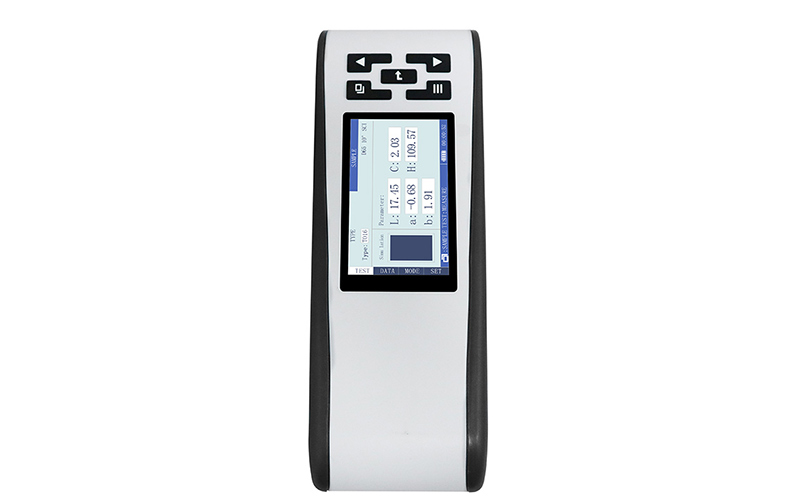

3 Display Show:

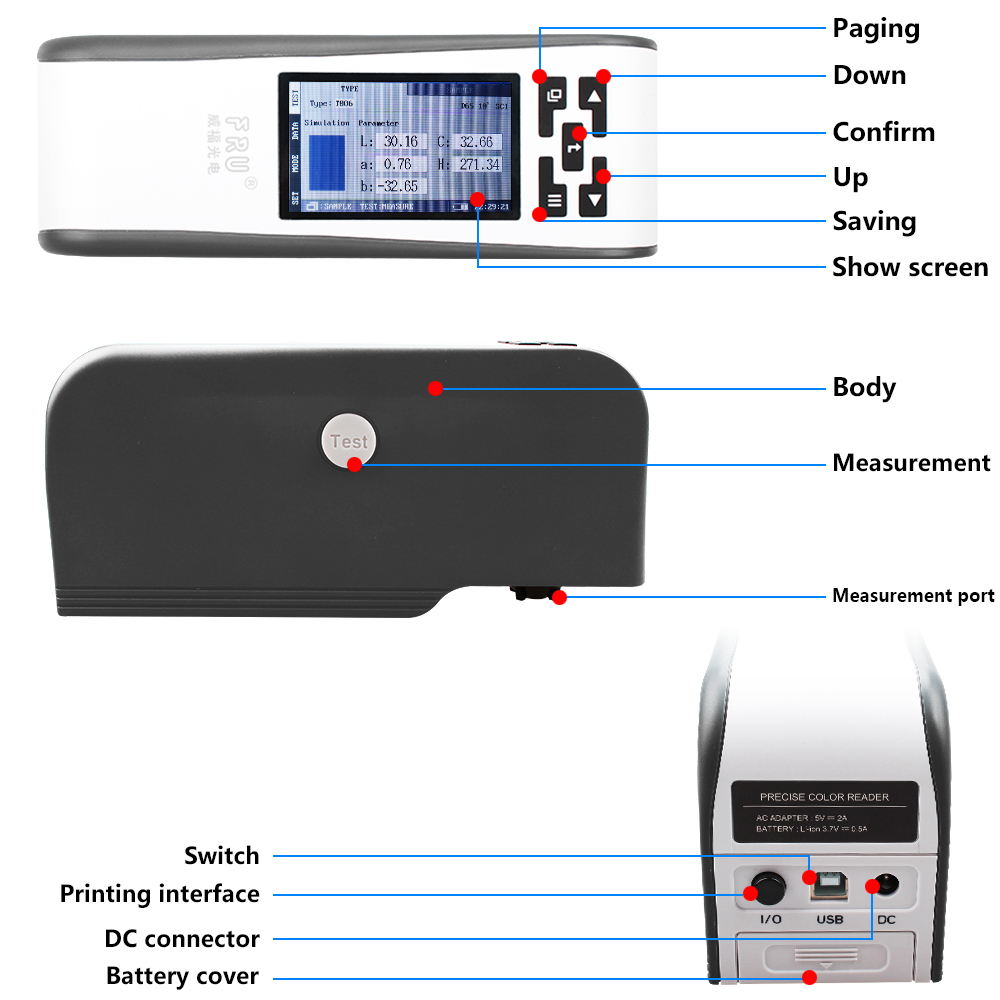

4.More details:

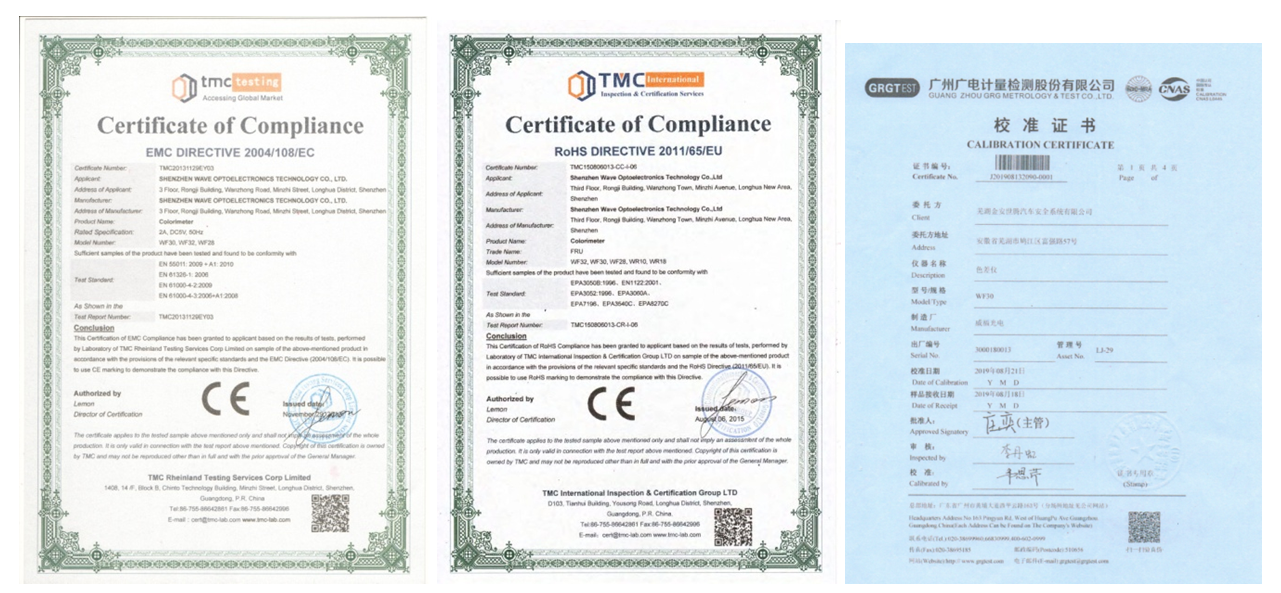

5.Certificates: CE/ROHS/CNAS
|
Model |
WF30 |
WF32 |
|
Color Space |
CIELAB CIELCH |
CIELAB/CIELCH/CIEXYZ/CIELUV/HunterLAB/sRGB
|
|
Color Difference Formula |
△E*ab |
△E*ab/△ECMC/△EISO/△ECIE94/△EFCMⅡ/△ELuv/△Ehunter/△Es
RGB
|
|
Measurement Caliber |
Φ4mm or Φ8mm or Φ16mm |
Φ4mm or Φ8mm or Φ16mm |
|
Illumination Condition |
CIE Recommendation：8/d |
CIE Recommendation：8/d |
|
Light Source |
D50 D65 F11(TL84) |
A C D50 D65 F2(CWF) F7 F11(TL84)F12(U30)
|
|
Sensor |
Photodiode array |
Photodiode array |
|
Observer |
CIE 10° Standard observer |
CIE 10° Standard observer |
|
Measurement Range |
L: 0 to 100 |
L: 0 to 100 |
|
Contain light way |
SCI SCE |
SCI SCE |
| Software |
YES |
YES |
| Color simulation |
NO |
YES |
|
Repeated Accuracy |
△E<0.05(take the deviation average after 30 times
measuring the whiteboard)
|
△E<0.03(take the deviation average after 30 times
measuring the whiteboard)
|
|
Table Difference |
△E<0.2 |
△E<0.2 |
|
Measurement Interval |
0.5 Sec. |
0.5 Sec. |
|
Storage Capacity |
Type sample data : 100 groups sample data: 20000 groups |
Type sample data : 100 groups sample data: 20000 groups |
|
Lifetime of Bulb |
5 years more than 1.6 million measurements |
5 years more than 1.6 million measurements |
|
Display Screen |
TFT true color 2.8inch@(16:9) |
TFT true color 2.8inch@(16:9) |
|
Language |
English,Simplified Chinese |
English,Simplified Chinese |
|
Working Temperature Range |
0℃-40℃（32℉-104℉） |
0℃-40℃（32℉-104℉） |
|
Storage Temperature Range |
-20℃-50℃（-4℉-122℉） |
-20℃-50℃（-4℉-122℉） |
| Humidity Range |
Relative humidity less than 85%,without condensation |
Relative humidity less than 85%,without condensation |
|
N.W/G.W |
550g/1.5kgs |
550g/1.5kgs |
|
Size |
172*80*60mm |
172*80*60mm |
|
Package Size |
280*230*105mm |
280*230*105mm |
|
Battery Charging Time |
8 hrs |
8 hrs |
|
Battery |
Li-ion battery, 5000 times Measurement |
Li-ion battery, 5000 times Measurement |
|

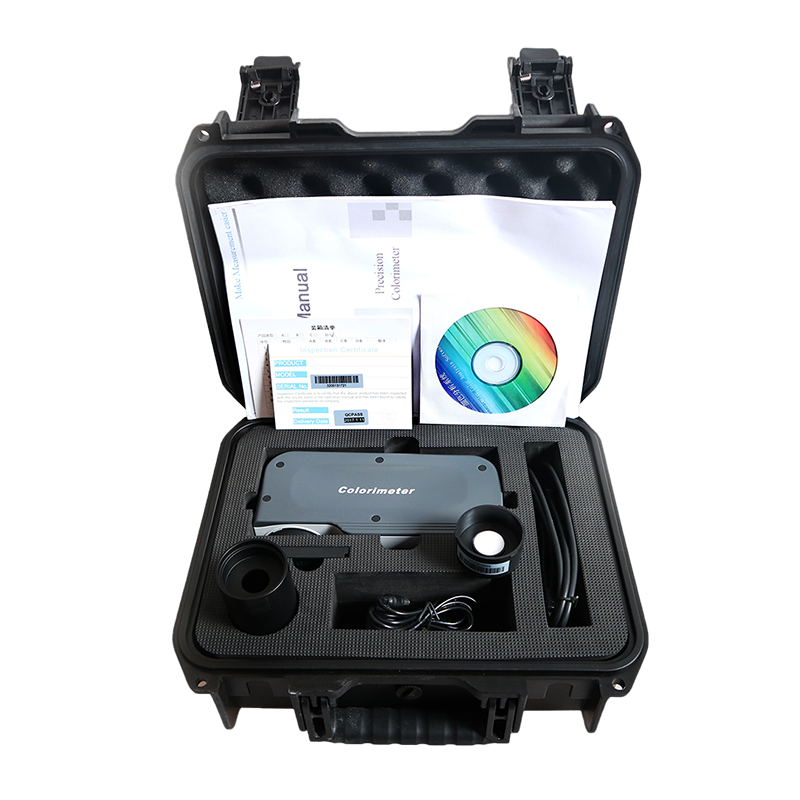

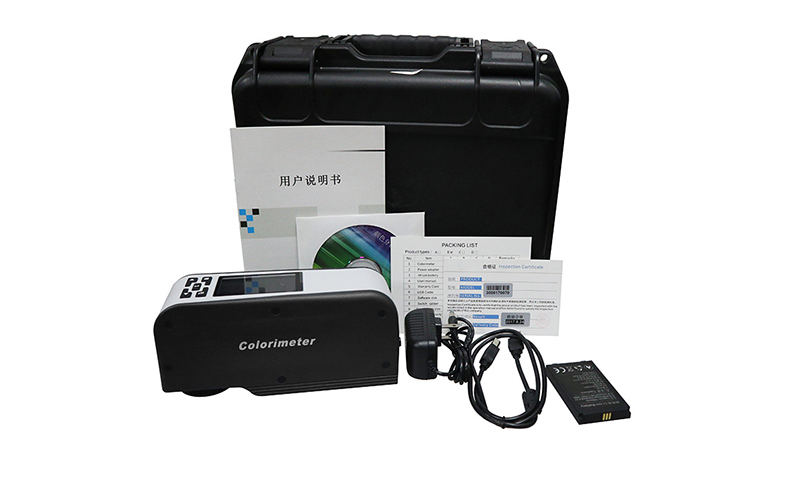

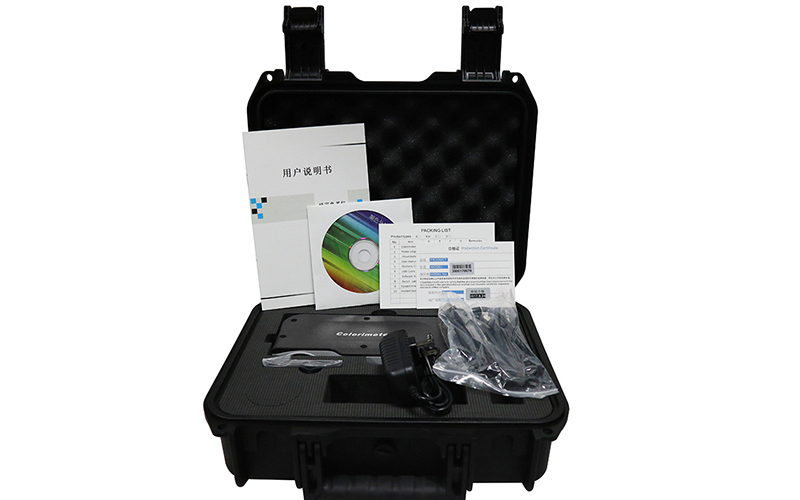

Standard Accessories |
AC adapter/ 3000mAH Li-ion battery/User Manual |
AC adapter/ 3000mAH Li-ion battery/User Manual |
|
Optional Accessories |
Micro Printer,Positioning Block |
Micro Printer,Positioning Block |
