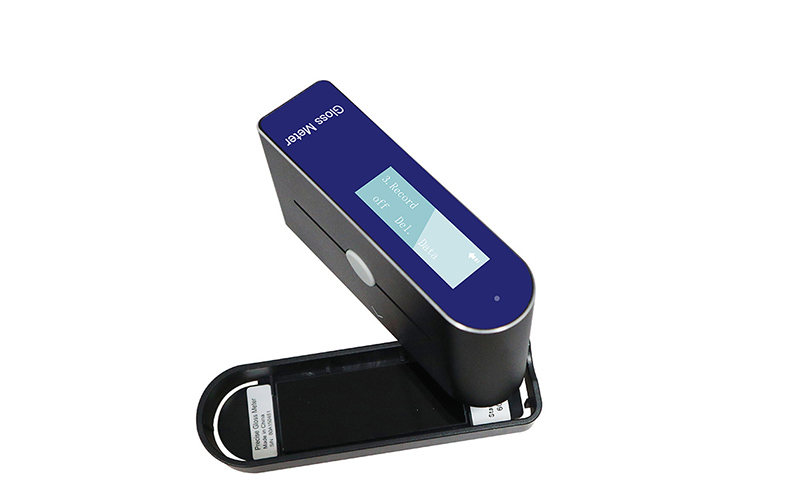

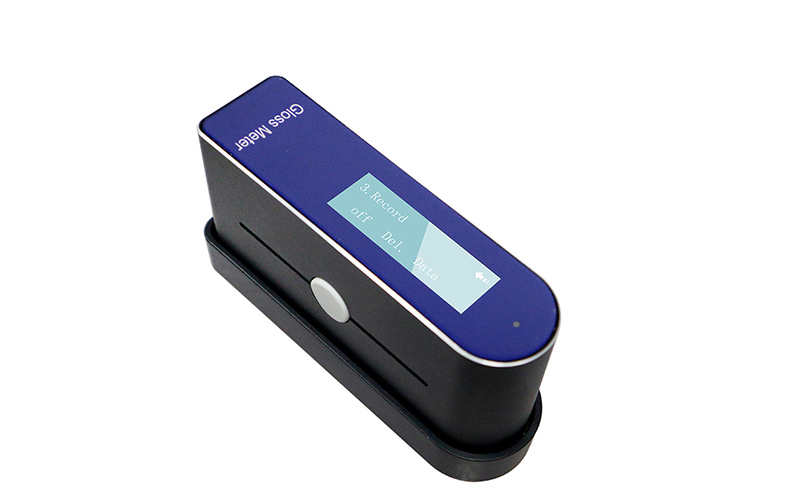

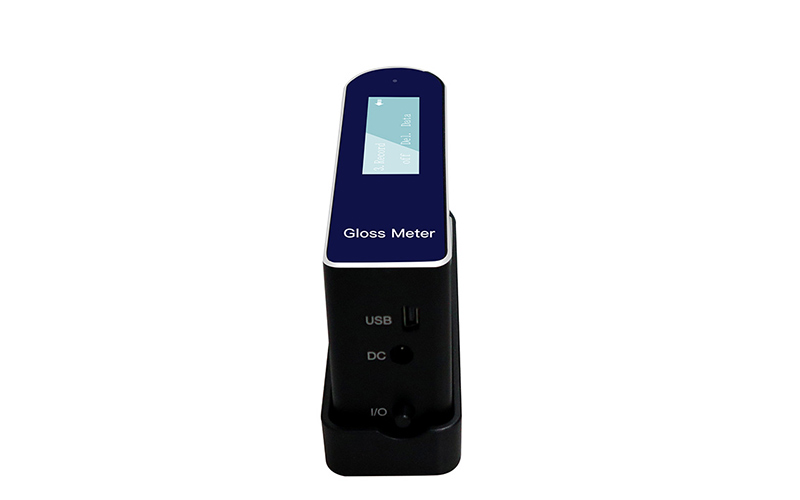

Gloss Meter WG60G-For Cambered /Arc/ Small surface
60°,0-2000GU, with PC software
WG60G gloss meter is produced according to the national verification regulation of JJG696 standard, adopt long life light source, good repeatability, small volume, high precision and good stability.
It is mainly used on Non-metallic materials like coatings, plastic, printing ink, paint, wood, marble, granite, polishing brick, porcelain, paper, stoving varnish and vitrified polished etc. Metal materials (High gloss materials) like Iron, electroplating, anodizing, copper, stainless, mirror etc.
Measuring Application:
60° test angle for normal gloss, from 0-2000 Gu.
Small aperture 4*2mm is suitable flat or Cambered /Arc/ Small surface.
like egg, ball, Pipe, hardware parts etc.
Advantages:
(1) High accurate and consistent capacity;
(2) Automatic measure, Statistical Mode, Tolerance determination, manually entering standard samples gloss data;
(3) Humanized design, good man-machine communication interface;
(4) Store 500 groups records;
(5) PC software support, can output many kinds of format of report, data transmission etc.
GlossW Software:
|
Model |
WG60 |
WG60G |
WG60T |
WG60A |
WG68 |
|
Picture |
|
|
|
|
|
|
Measurement Range |
0-200Gu |
0-2000Gu |
0-200Gu |
0-1000Gu |
20°: 0-2000 60°: 0-1000 85°: 0-160 |
|
Application |
Apply on paint, ink, stoving varnish, coating, wood products; Marble, granite, vitrified polished tile, pottery brick and porcelain; Plastic, printing, paper; Other metallic material. |
||||
|
Projection Angle |
60° |
20°60°85° |
|||
|
Measuring Spot |
12*40mm |
1*3 mm |
14*61mm |
||
|
Measuring Mode |
Automatic/ manual /single / average and combination angle |
Automatic/ manual /single /average and combination angle Show maximum/minimum value |
|||
|
Standard Sample Setting |
Manually setting/bring out stored data for setting/manually setting tolerance |
||||
|
Data Storage |
100 groups |
500 groups |
10000 groups |
50000 groups |
|
|
set standard sample in any stored data, user-define the tolerance range |
|||||
|
Language |
Chinese/English |
||||
|
Output |
Mini printer |
Software to PC |
Mini printer |
Software to PC |
|
|
Division Value |
0.1Gu |
0-1000:0.1Gu/1000-2000:1Gu |
|||
|
Repeatability |
0.2Gu |
0-100:0.2＞100:0.2% |
|||
|
Reproducibility |
0.4Gu |
0.2Gu |
|||
|
Indication Error |
1.5Gu |
1.0Gu |
|||
|
International Standard 60° |
ISO－2813/ASTM－C584/ASTM－D523/DIN－67530/ASTM－D2457/JND-A60/JND-P60/ISO7668 |
||||
|
National Standard 60° |
GB 9754/GB 9966/GB 8807 - GB/T 9754,GB/T 13891,GB/T 7706,GB/T 8807 |
||||
|
Working Temperature |
10℃ - 40℃ |
||||
|
Storage Temperature |
-10℃ - 70℃ |
||||
|
Humidity Range |
Relative humidity less than 85%, without condensation |
||||
|
Volume |
122*34*60mm |
159x49x72mm |
|||
|
Weight |
310g |
500g |
|||
|

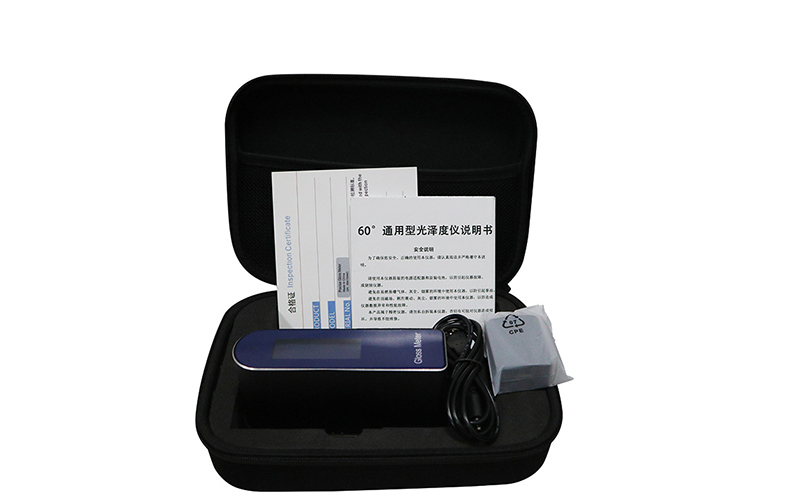

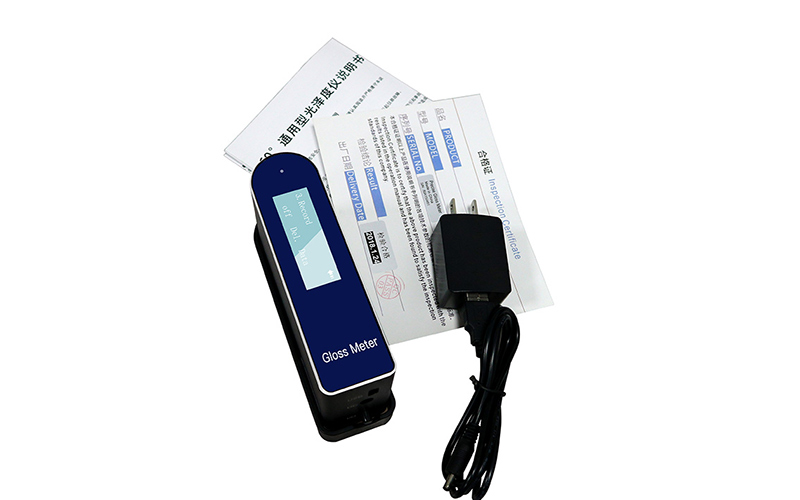

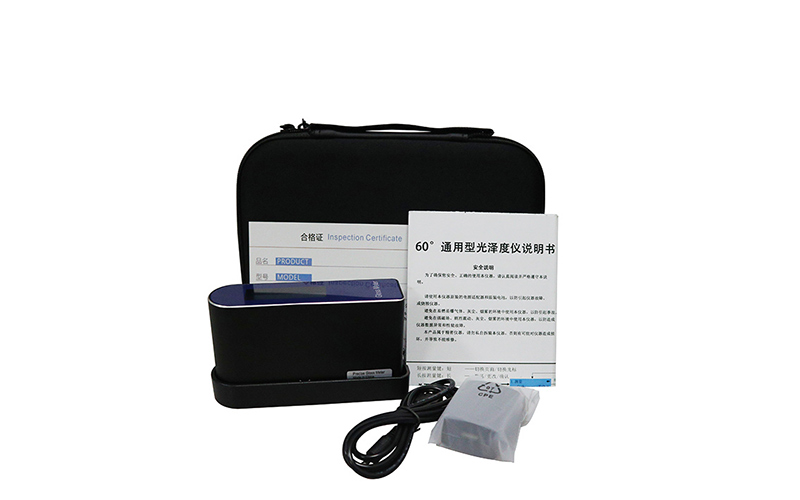

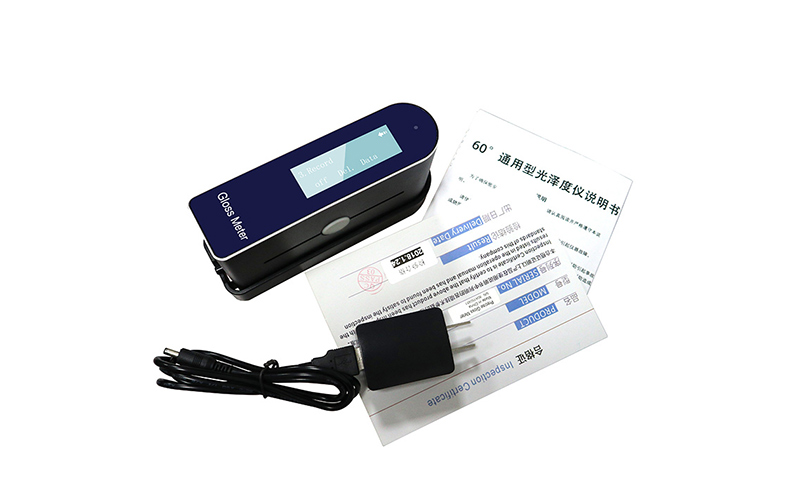

Standard Accessories |
Power adapter/User manual Warranty card standard board |
Add usb cable GlossW software |
Add standard + 5V battery |
Add standard + 5V/usb cable/GlossW software |
|
