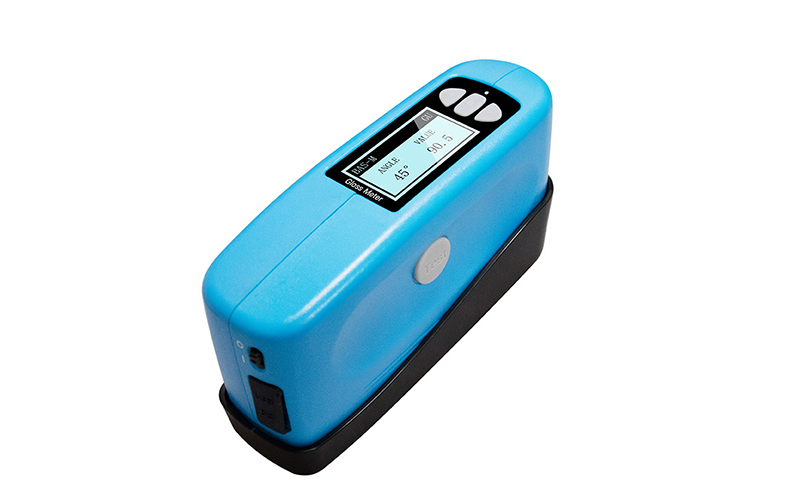

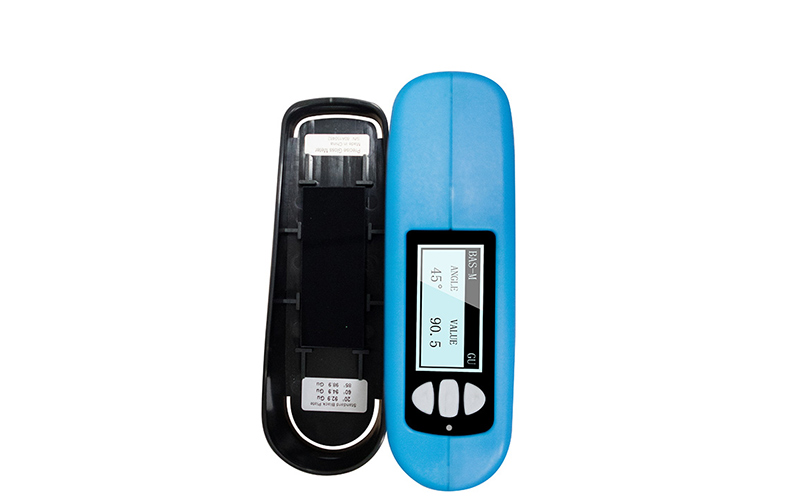

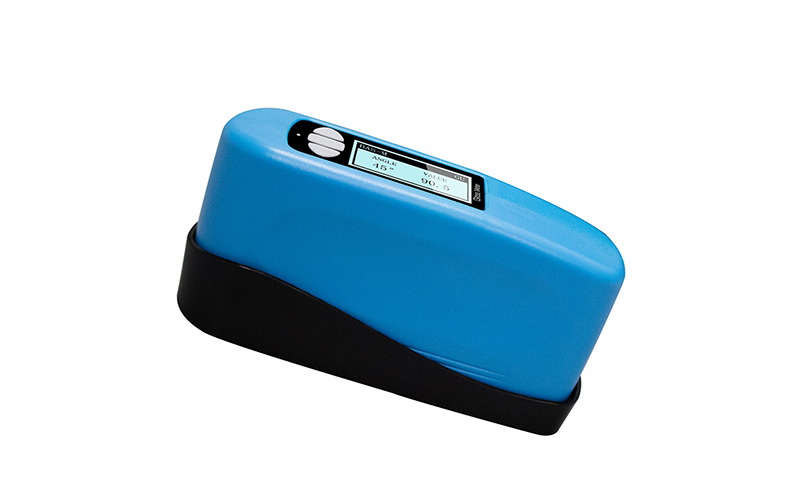

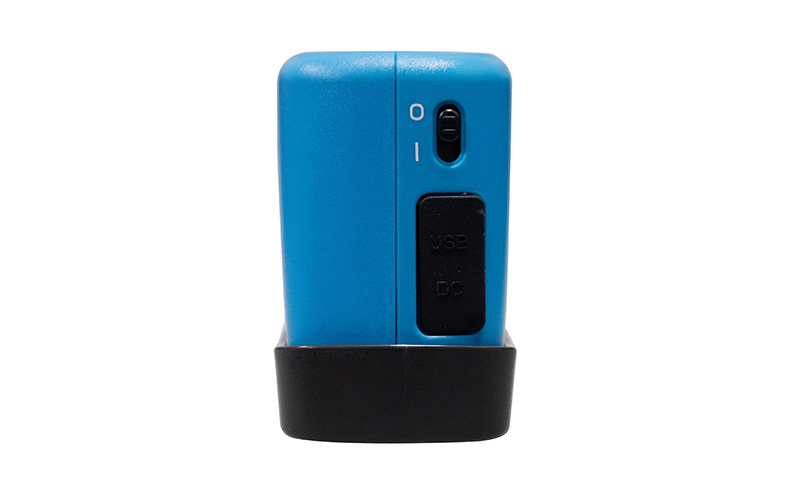

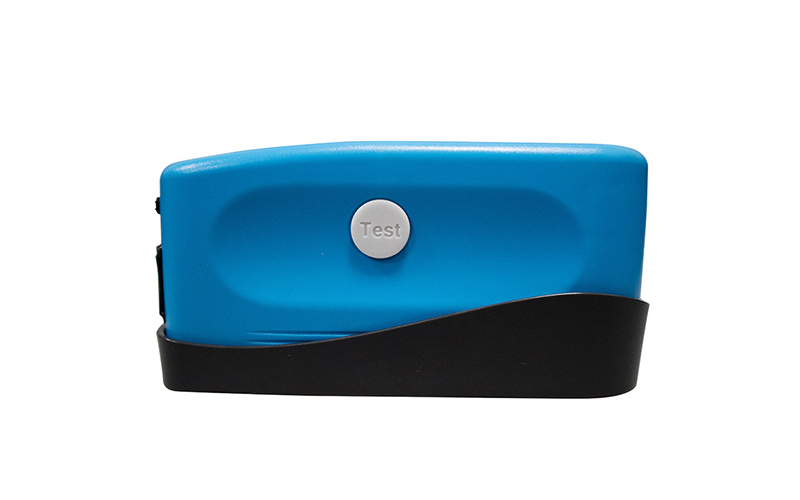

WG45 Gloss Meter (45°Test Angle)
WG45 gloss meter is produced according to the national verification regulation of JJG696 standard, adopt long life light source, good repeatability, small volume, high precision and good stability.
It is mainly used on Ceramic, enamel , plastic, film etc.
_______________________________________________________________________________________
1.Main Feature
(1) High accurate and consistent capacity; Pass CE/ROHS/CNAS approval;
(2) Automatic measure ,Statistical Mode( show average,Max, Min) ,Tolerance determination, Manually entering standard samples gloss data ;
(3) Humanized design, good man-machine communication interface;
(4) Single angle can store 10000 testing records, storage structure is: 100 prototypes, each prototype with 100 testing data;
(5) Automatic shutdown function, low power warning functions, full data storage hint functions;
(6) PC software support , can output many kinds of format of report, data transmission etc.
_______________________________________________________________________________________
2.Aperture (caliber) Application:
Big aperture is normally used on flat or wide arc surface samples.
______________________________________________________________________________________________________
3.GlossW Software Effect:
|
Specification |
Unit |
Single Gloss Meter |
|
Measuring Angle |
degree |
45° |
|
Measuring Range |
GU |
45°: 0-1000 |
|
Measuring Spot |
mm |
45°: 61*14 |
|
Division Value |
GU |
0-1000: 0.1 |
|
Repeatability |
GU |
0-100:0.2 >100:0.2% |
|
Indication Error |
GU |
±1.5 |
|
Zero Error |
GU |
0.2 |
|
Working Temperature |
℃ |
10℃ - 40℃ |
|
Storage Temperature |
℃ |
-10℃ - 70℃ |
|
Humidity Range |
|
Relative humidity less than 85%, without condensation |
|
Power Adapter |
|
Section 2 5 alkaline batteries/power adapter |
|
Volume |
mm |
159x49x72 |
|
Weight |
g |
500 |
|
Model |
WG60 |
WG60G |
WG60T |
WG60A |
WG68 |
|
Picture |
|
|
|
|
|
|
Measurement Range |
0-200Gu |
0-2000Gu |
0-200Gu |
0-1000Gu |
20°: 0-2000 60°: 0-1000 85°: 0-160 |
|
Application |
Apply on paint, ink, stoving varnish, coating, wood products; Marble, granite, vitrified polished tile, pottery brick and porcelain; Plastic, printing, paper; Other metallic material. |
||||
|
Projection Angle |
60° |
20°60°85° |
|||
|
Measuring Spot |
12*40mm |
1*3 mm |
14*61mm |
||
|
Measuring Mode |
Automatic/ manual /single / average and combination angle |
Automatic/ manual /single /average and combination angle Show maximum/minimum value |
|||
|
Standard Sample Setting |
Manually setting/bring out stored data for setting/manually setting tolerance |
||||
|
Data Storage |
100 groups |
500 groups |
10000 groups |
50000 groups |
|
|
set standard sample in any stored data, user-define the tolerance range |
|||||
|
Language |
Chinese/English |
||||
|
Output |
Mini printer |
Software to PC |
Mini printer |
Software to PC |
|
|
Division Value |
0.1Gu |
0-1000:0.1Gu/1000-2000:1Gu |
|||
|
Repeatability |
0.2Gu |
0-100:0.2＞100:0.2% |
|||
|
Reproducibility |
0.4Gu |
0.2Gu |
|||
|
Indication Error |
1.5Gu |
1.0Gu |
|||
|
International Standard 60° |
ISO－2813/ASTM－C584/ASTM－D523/DIN－67530/ASTM－D2457/JND-A60/JND-P60/ISO7668 |
||||
|
National Standard 60° |
GB 9754/GB 9966/GB 8807 - GB/T 9754,GB/T 13891,GB/T 7706,GB/T 8807 |
||||
|
Working Temperature |
10℃ - 40℃ |
||||
|
Storage Temperature |
-10℃ - 70℃ |
||||
|
Humidity Range |
Relative humidity less than 85%, without condensation |
||||
|
Volume |
122*34*60mm |
159x49x72mm |
|||
|
Weight |
310g |
500g |
|||
|

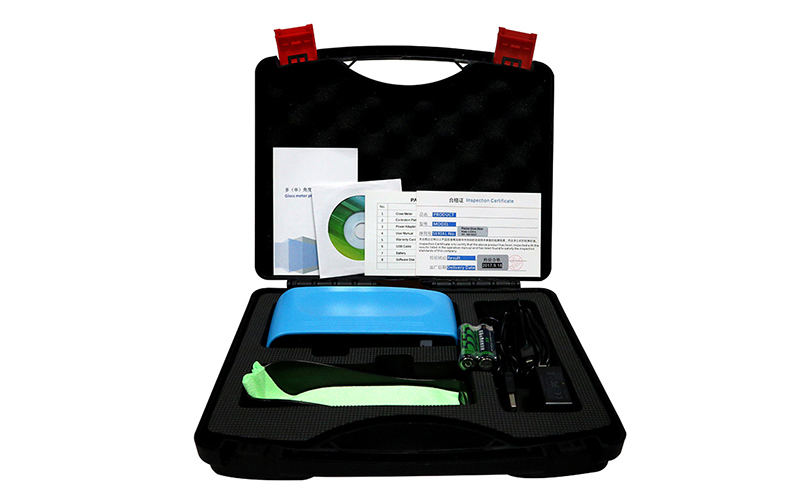

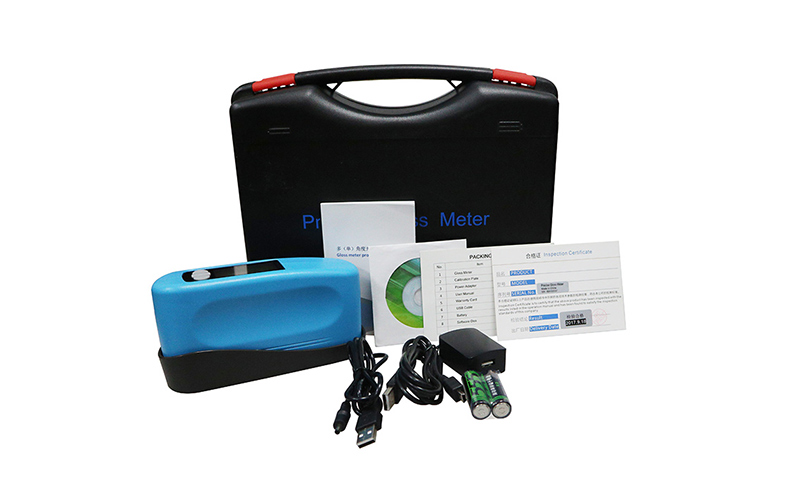

Standard Accessories |
Power adapter/User manual Warranty card standard board |
Add usb cable GlossW software |
Add standard + 5V battery |
Add standard + 5V/usb cable/GlossW software |
|
