automatic loading pipe high precision tube laser cutting machine

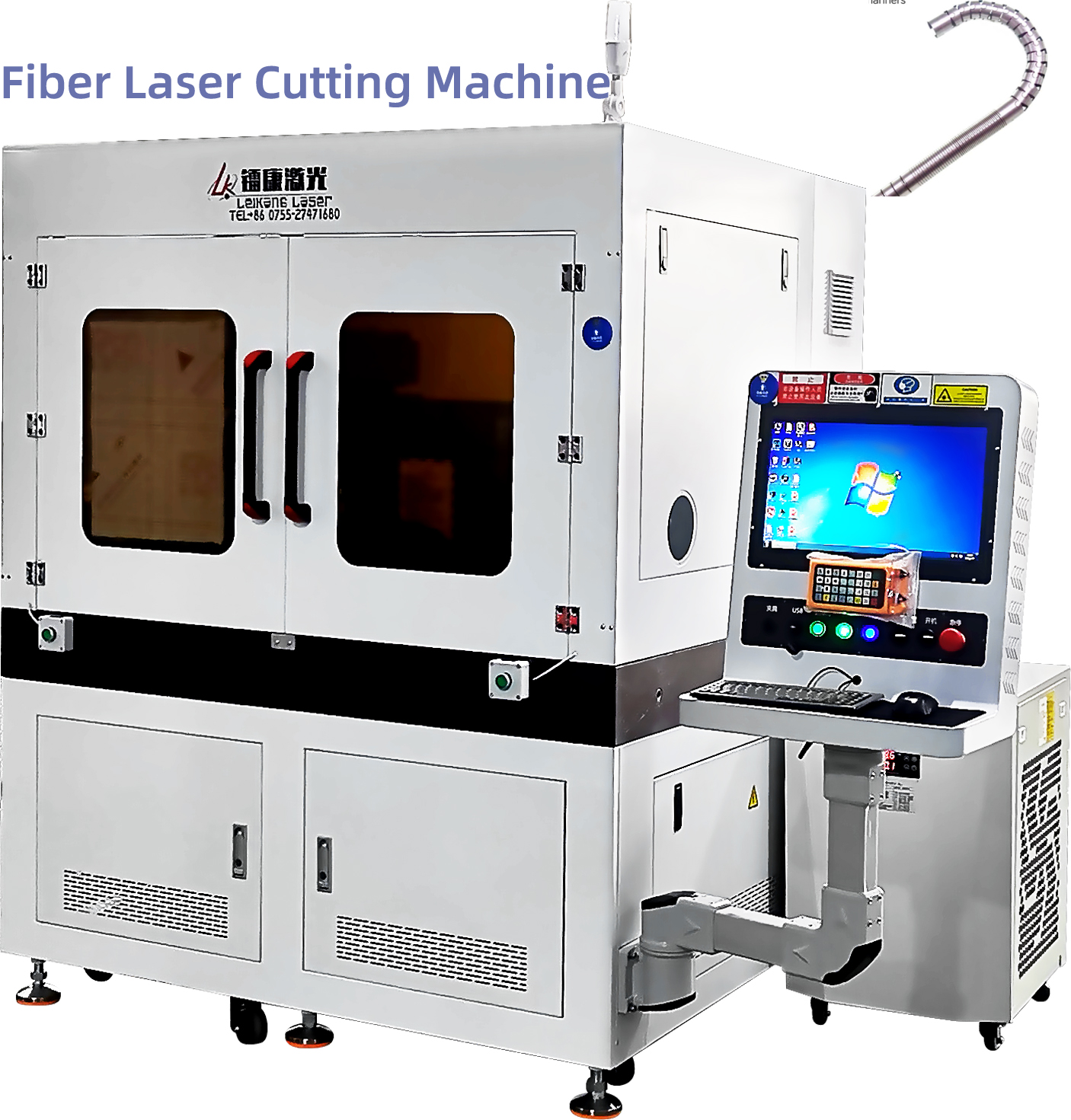

Tube laser cutting machine with automatic loading system

Video LinkModel :LK-JMW (AL)

Power options : 200W/ 500W/1000W/ 1500W
Automatic tube laser cutter for square and circular SS316, 304 medical pipe processing medical catheter, ultrosonic scalple,stent, endoscopic, micro tube
Automatic tube feeding system with air compressor complete set laser cutting machine for smaller diameter pipe

24 Month maintenance

Fast delivery

24 Hour treatment

Production video

Product Details

Description

Technician Specification

Packing List

Feature :

automate loading tubes designed to automatically feed, orient, and load tubes into machines or conveyors without requiring human intervention. This can significantly reduce the need for manual labor, increase throughput, and improve consistency in production. align the tubes in a specific direction to ensure they are positioned correctly for the laser cutting process
automatic pipe loading system
high-pressure air compressor for a laser cutting machine is essential for powering the system that helps in the cutting process. In laser cutting, the primary function of compressed air is to assist in material cutting, remove debris, and cool the cutting area. High-pressure air, in particular, is required for certain materials and cutting tasks, where stronger airflow is necessary to achieve optimal results.

high pressure air compress for laser cutting machine

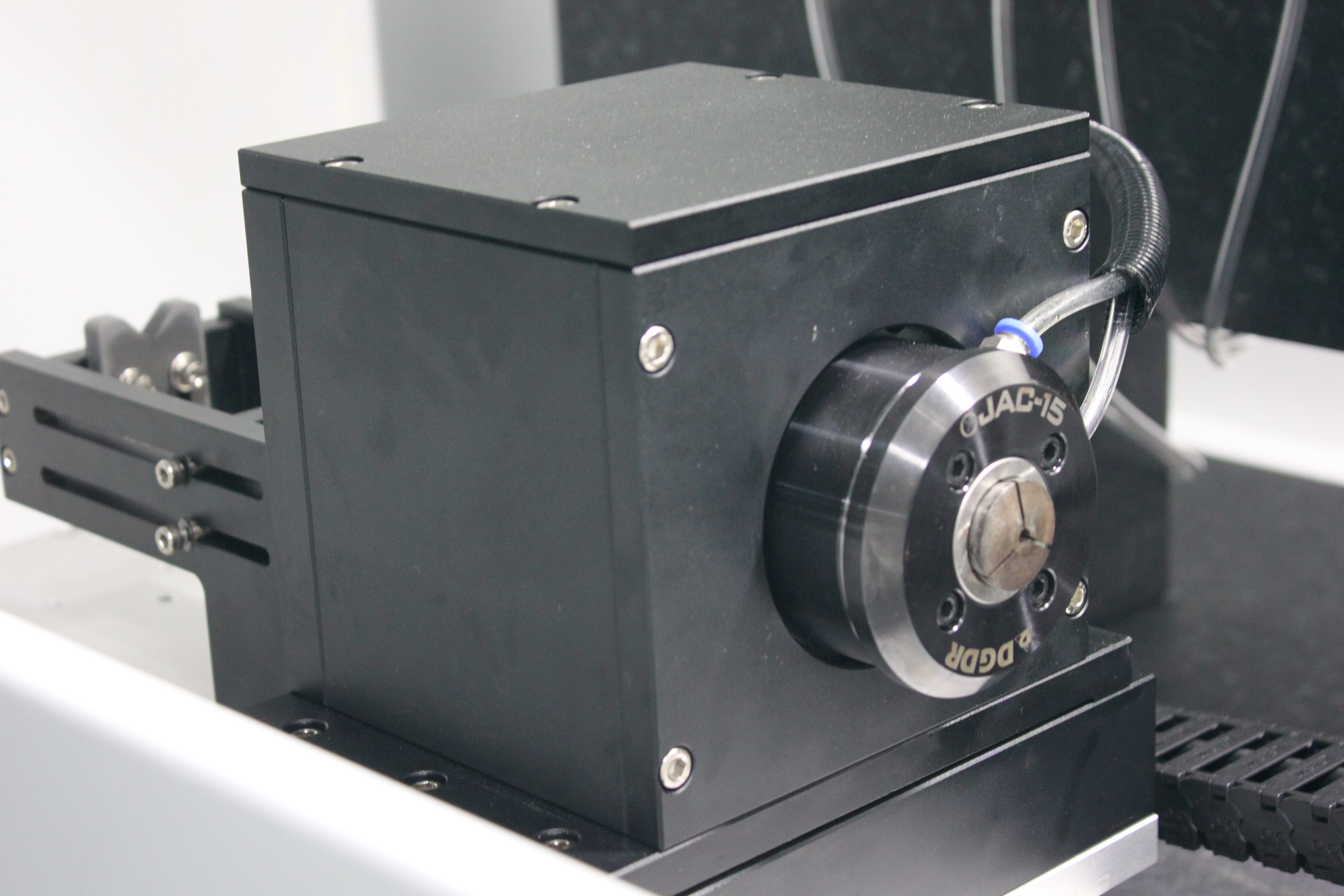

Direct Drive Motors was high-precision motors used for controlling position and speed with minimal pipe with high quality cutting and high torque, smooth rotation, and minimal vibrations
Direct driver motor of laser cutting

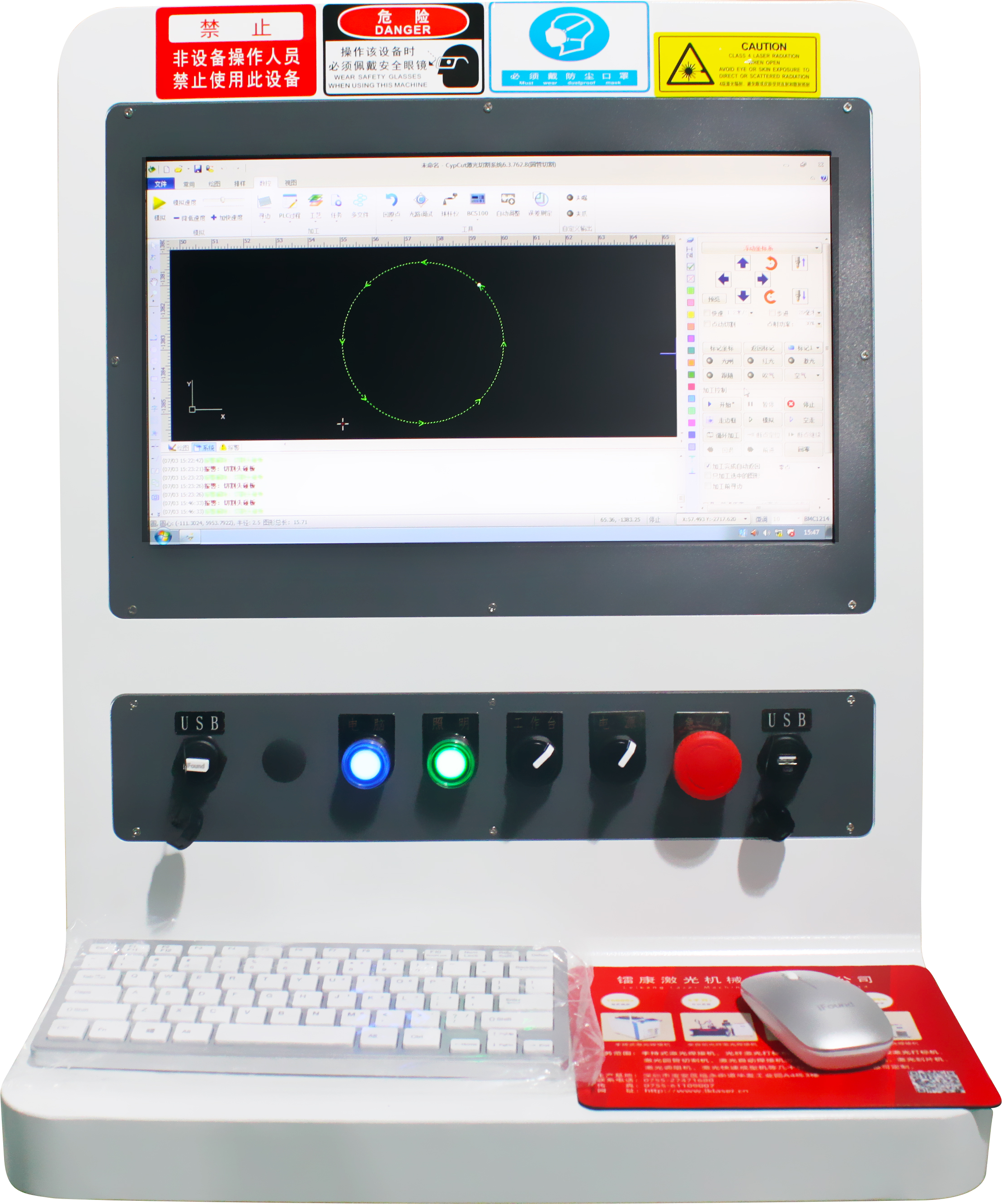

Tubepro laser software & Cypcut laser software

TubePro is a tube and pipe cutting system designed to integrate with laser cutting technology for highly efficient cutting of tubes and pipes made from various materials, including steel, stainless steel, aluminum, and more. It is especially popular in industries such as automotive, aerospace, construction, and furniture manufacturing.

CypCut is an advanced laser cutting system developed by CypLaser that is widely used for both metal sheet and tube cutting. It’s known for its high performance, user-friendly interface, and cost-effectiveness in cutting complex shapes and geometries.

Laser power	1000W /1500W /2000W ......
Max.working speed	300mm/s(X);100mm/s(Z),600rpm(θ)
Precision	± 5 um (X) ; ± 15 arcsec ( θ) ; ± 5 um (Z)
Re-position	± l um(X1); ± 3 arcsec(θ); ± l um(Z)
Mini Width Of Cutting Slit	20 um
Consistency Of Cutting Slit	± 5 um (3σ)
Laser Type	Fiber laser
Frequency	0~50KHz
Laser Beam	M2<1.1
Materials	304，316L, nickel-titanium alloy, cobalt-base alloy, pure metals such as iron and magnesium alloy
Thickness And Length	0~1.0±0.01 mm 1/the length not limit
Diamaters	0.3-16±0.02 mm
Dimensions	1200mmx1 500mmx 1850mm
N.G	1500Kg

1 Protective goggles	1 Power cable
1 data cable	1 tool kit
1 U disk	Machine
