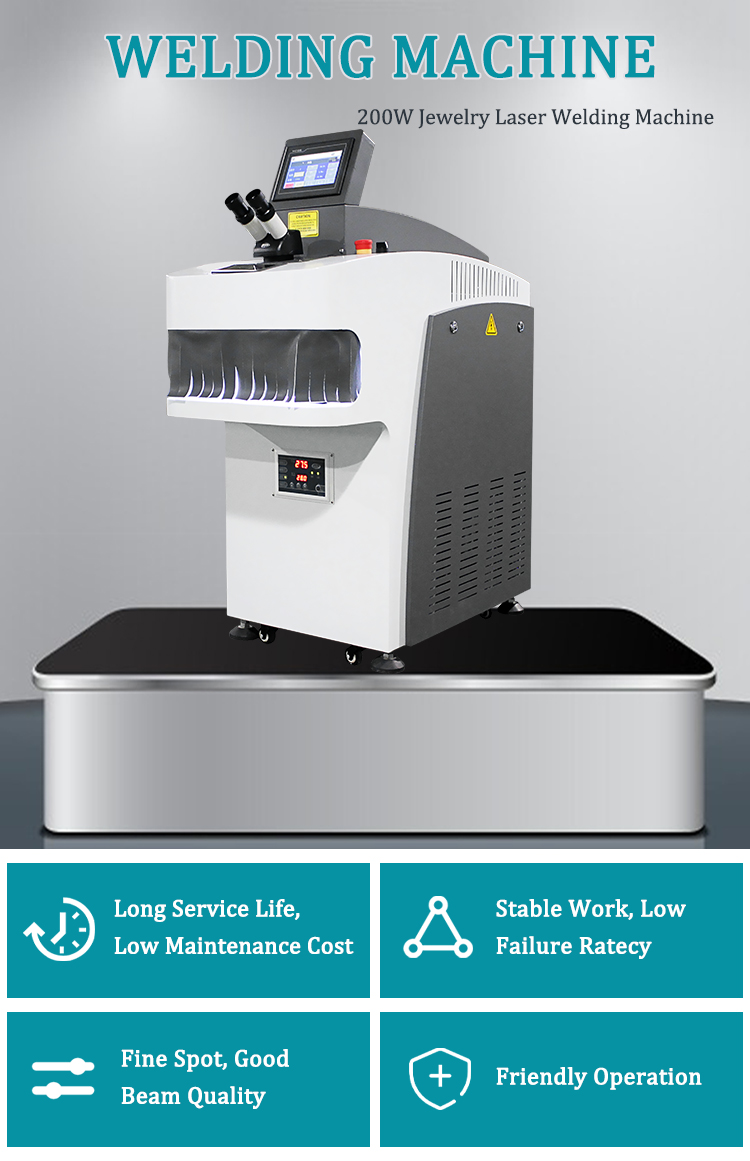

VIDEO LINK Model :LK-SWI
Power options : 200W
Machine could welding material: gold ,silver, aluminum , platinum ,copper.....
Internal chiller type ,stable cooling system and welding power system
specially used for spot welding, perforating, repairing, re- tipping and re-sizing of gold/silver/titanium jewelry and small accessories. etc.
24 Month maintenance
Fast delivery
24 Hour treatment
Production video

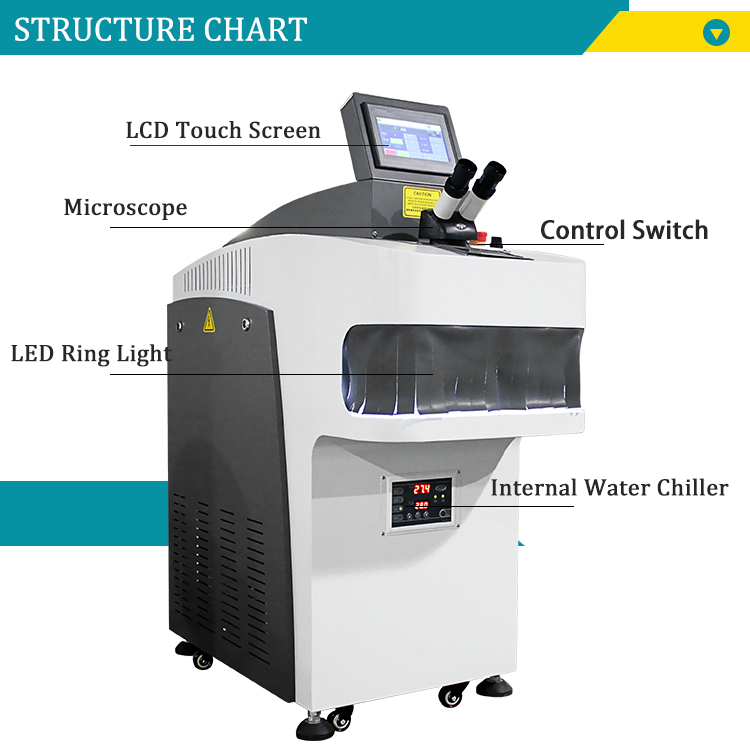

Feature :
1.Machine system
Adopt 10x microscope ,which easy to observation micro jewelry welding position
LCD control penal is available in Chinese and English versions, and the language type can be arbitrarily specified.
2.Internal chiller system
cooling method was water cooling ,its with more stable water capacity :18L ,effective reduce the machine’s overheating caused by excessive used of machine
3.High brightness
Observation of welding positions is clearer by using adjustable high brightness of LED ring astral lamp
Machine could adjust the welding parameter via inside worktable joystick and outside LCD screen
Easy to operation and multi-function which meet different working request
|
Model |
LK-SWI |
|
Max. Laser Power |
200W |
|
Laser Type |
YAG |
|
Laser Wavelength |
1064um |
|
(Pulse-Width (ms ) |
0.5ms-20ms |
|
Pulse Energy |
150J |
|
Pulse Frequency |
0-50HZ |
|
Laser Welding Depth |
0.1mm-2mm |
|
Spotlight Cavity Reflector |
Metal Cavity |
|
Sighting Positioning System |
Red light ,Microscope |
|
Aim Operation |
Round Point Cursor |
|
Adjusting range of light spot |
0.6-3.0mm |
|
Cooling system |
Internal Water cooling |
|
Integrity Power |
5.5kw |
|
Power Supply |
AC220VAC+-15%/50HZ/25A |
|
Lifetime |
3,000,000 times |
|
Machine size |
|
|
Package size |
1140*670*1480mm |
|
Machine net weight |
188kgs |
|
Machine gross weight |
200kgs |
|
1 pcs goggles |
3pcs protective lends |
|
1 pcs gas cable |
1 foot switch |
