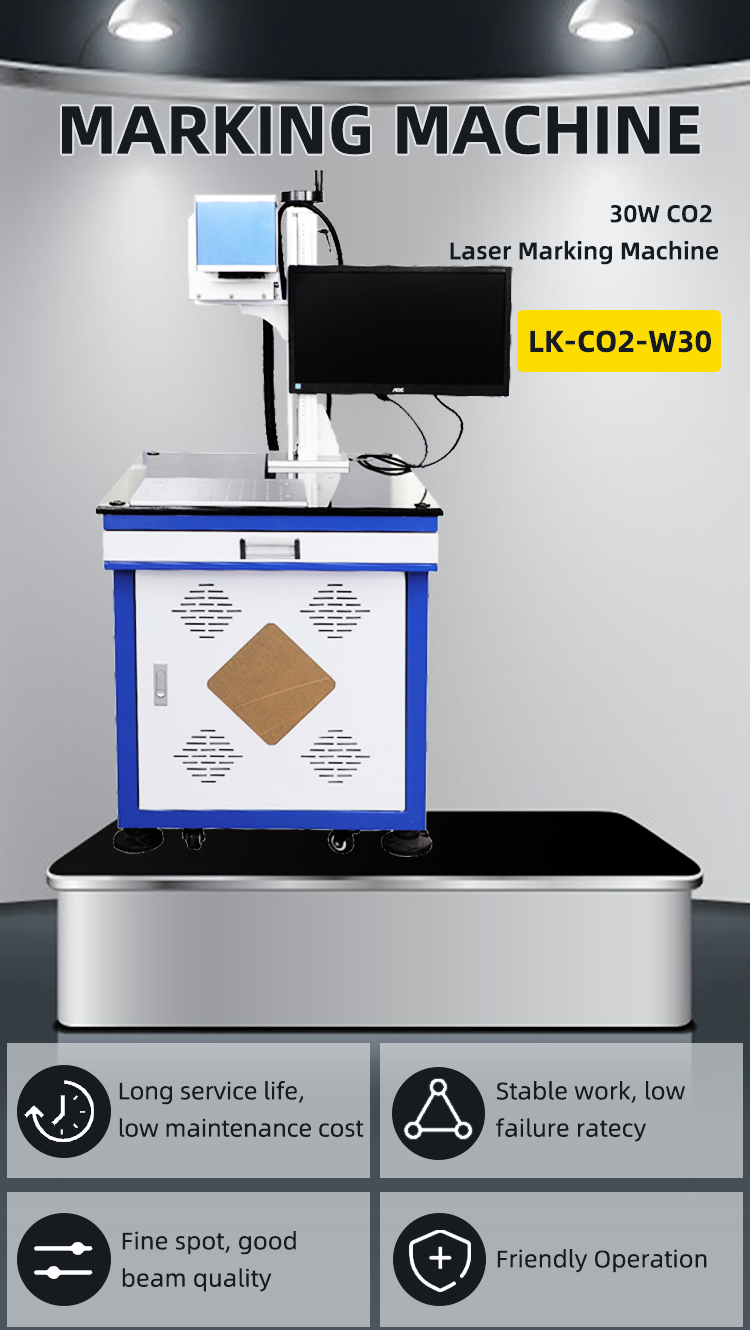

Video Link Model :LK-CO2
Power options : 20W /30W /60W
Great at marking paper, resins, wood, rubber and transparent materials (like glass and PET).
Stable performance and able to work for a long time (up to 20000h).
system is high in marking precision, fast in speed and extreme stable in performance.
24 Month maintenance
Fast delivery
24 Hour treatment
Production video
-777100.png)
-818302.jpg)
-115239.jpg)
-385925.jpg)
-821665.jpg)
-589052.jpg)
Feature :
1.Professional software
Compatible with a lot of software, no-touch processing for collecting and making various labels,No impact on the surface of original products (high resolution remained)
2.Excellent quality

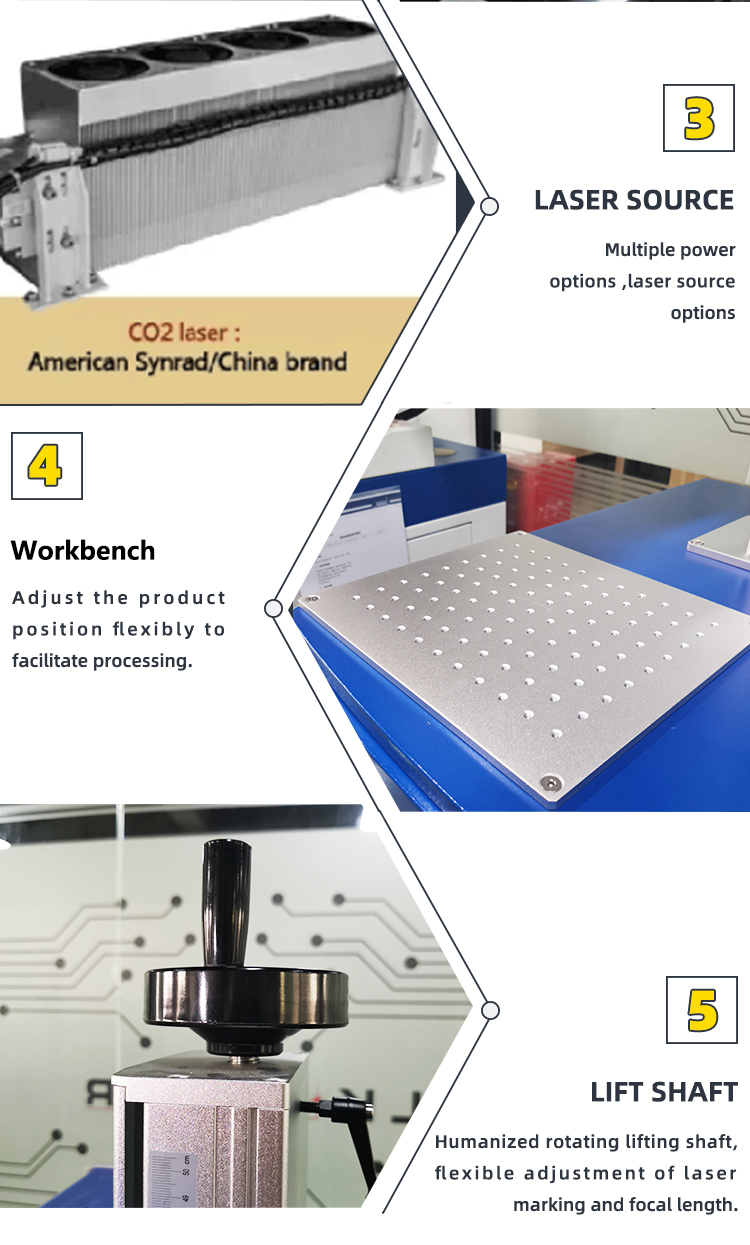

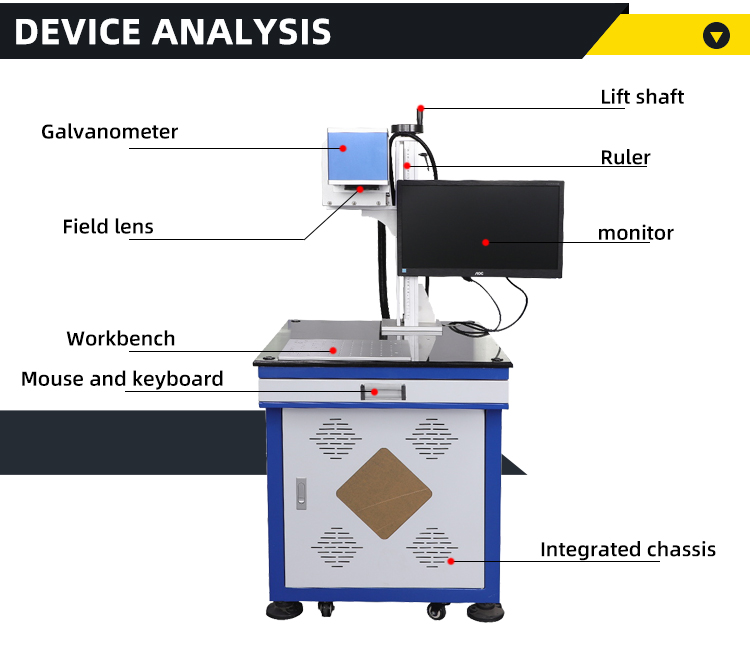

machine was equipped with CO2 laser source and high-speed galvanometer，the speed is extremely fast and the precision is very high. The machine performance is steady and can continuously working 12 hours. The optical system is fully sealed, it can prevent the dust enters laser body and reduces the equipment failure rate

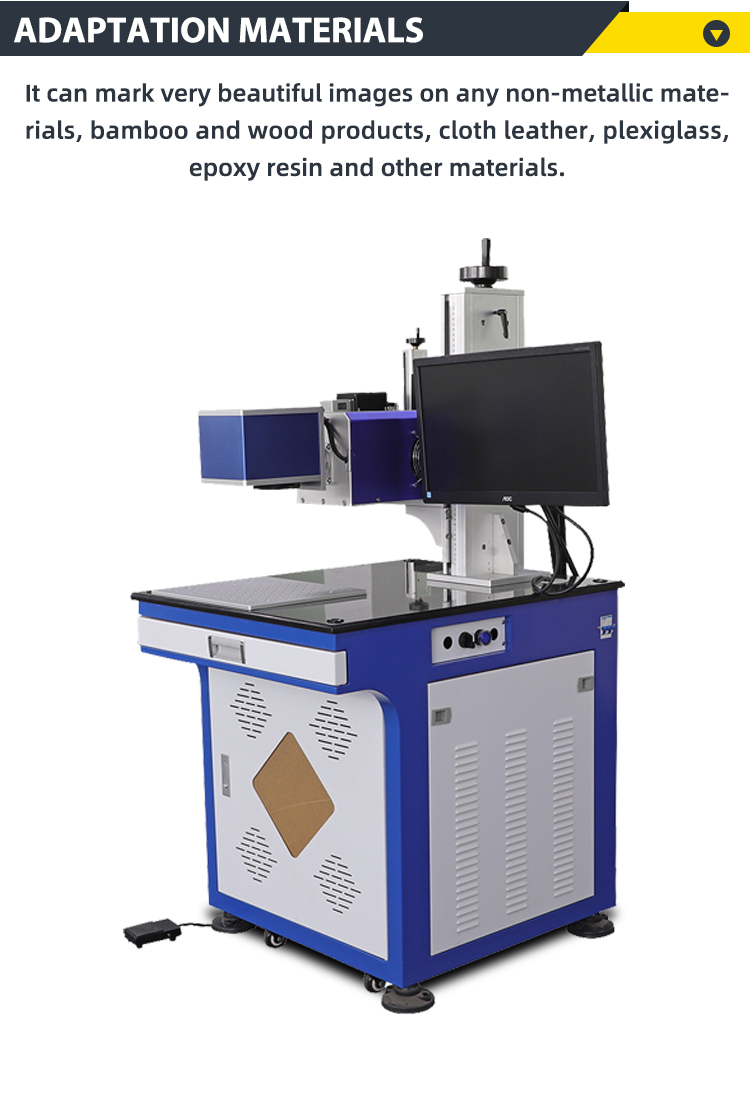

3.Suit for non-metal material
Widest non-material marking range reduces the number of lasers that are required to cover multi-lane / wide web applications, reducing investment and running cost
4.Good marking effect
In the same plane, you can achieve black and white, and even multi-color marking, the effect is more abundant. For general metal surface blackening, such as anodized aluminum
|
Laser power |
20W /30W /60W |
|
Laser Type |
CO2 laser |
|
Focus mode |
Galvo head |
|
Effective working area |
70*70~300*300mm |
|
Marking depth |
<0.4mm |
|
Line width |
0.01-0.05mm |
|
Marking Speed |
≤1000 mm/s |
|
Repeatability |
≤0.001mm |
|
Marking accuracy |
≤0.002mm |
|
Marking software |
EZCAD2 |
|
Marking content |
Image processing,Common vector images are supported. (ai, dxf, dst, plt…) Common types of images are supported. (bmp, jpg, gif, tga, png, tif…) Serial number , QR code, Bar code ....... |
|
Machine size |
940*660*1340mm |
|
Package size |
960*680*1540mm |
|
Machine net weight |
125KGS |
|
Machine gross weight |
140KGS |
|
4 Mounting screw |
2 Positioning strip |
|
1 Protective goggles |
1 Pedal |
|
1 Ruler |
1 tool kit |
|
1 U disk |
1 box aluminum plate |
|
1 Power cable |
Machine |
