Visual Laser Marking Machine, Visual Automatic Laser Marking Machine, Automatic Vision Laser Marking Machine

Video Link

Model :LK-FO

Power options : 20W /30W /50W

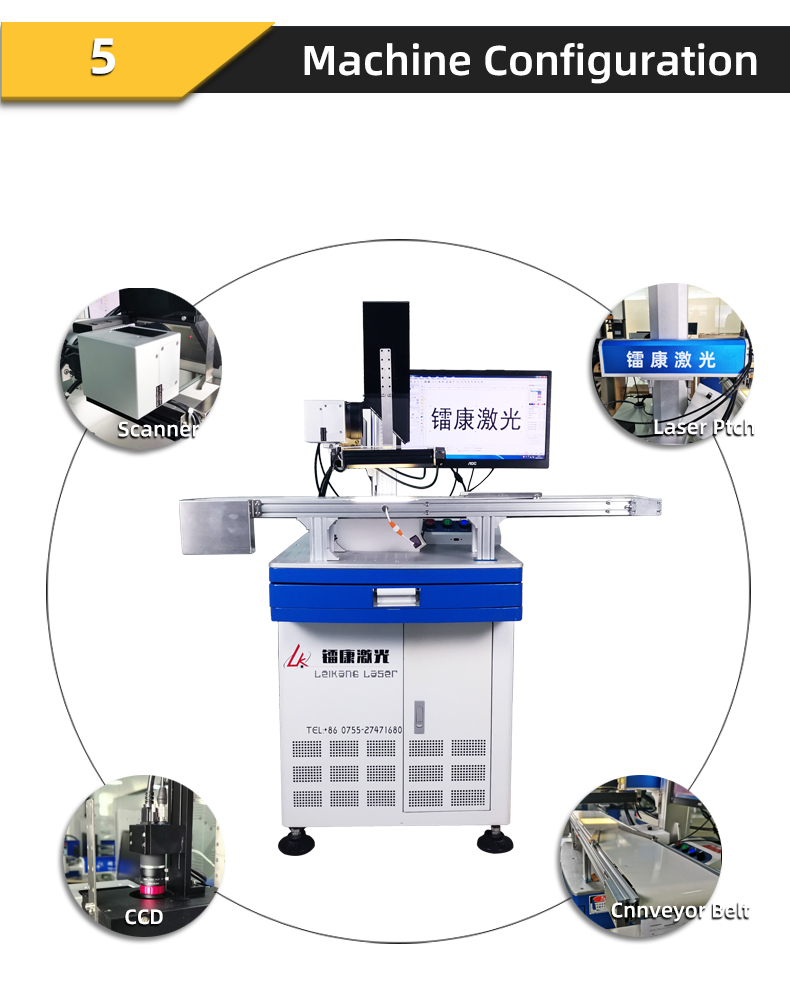

Visual system with conveyor belt automatic marking

Suit for batch marking on mini or micro product

Saving cost and more efficiency

24 Month maintenance

Fast delivery

24 Hour treatment

Production video

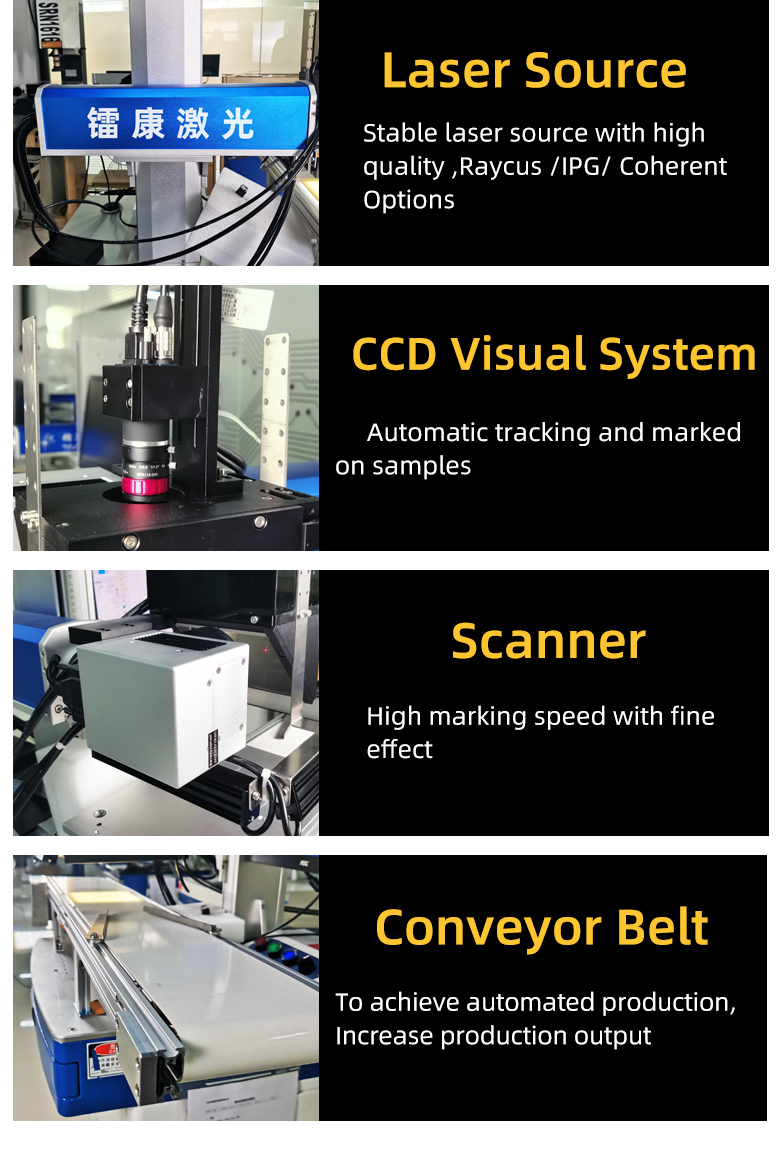

Feature :

Long service life with stable marking , lower maintenance cost and lower failure rate
Laser bead with good quality and with lower heating influence on material with exquisite marking effects
Advanced circuit ,compact design with smaller structure portable model easy to assembly and operation
Powerful editing function ,Support Microsoft Windows XP,Win7,Win10 system.
Support ai,dxf,dst,plt bmp,jpg,gif,tga,png,tif and other file formats
Support for TrueType fonts,single line fonts (JSF),SHX fonts,dot matrix fonts (DMF),1D bar codes and 2D bar codes.Flexible variable text processing,changing text in real time during processing,can directly read and write text files,SQL databases and Excel files.

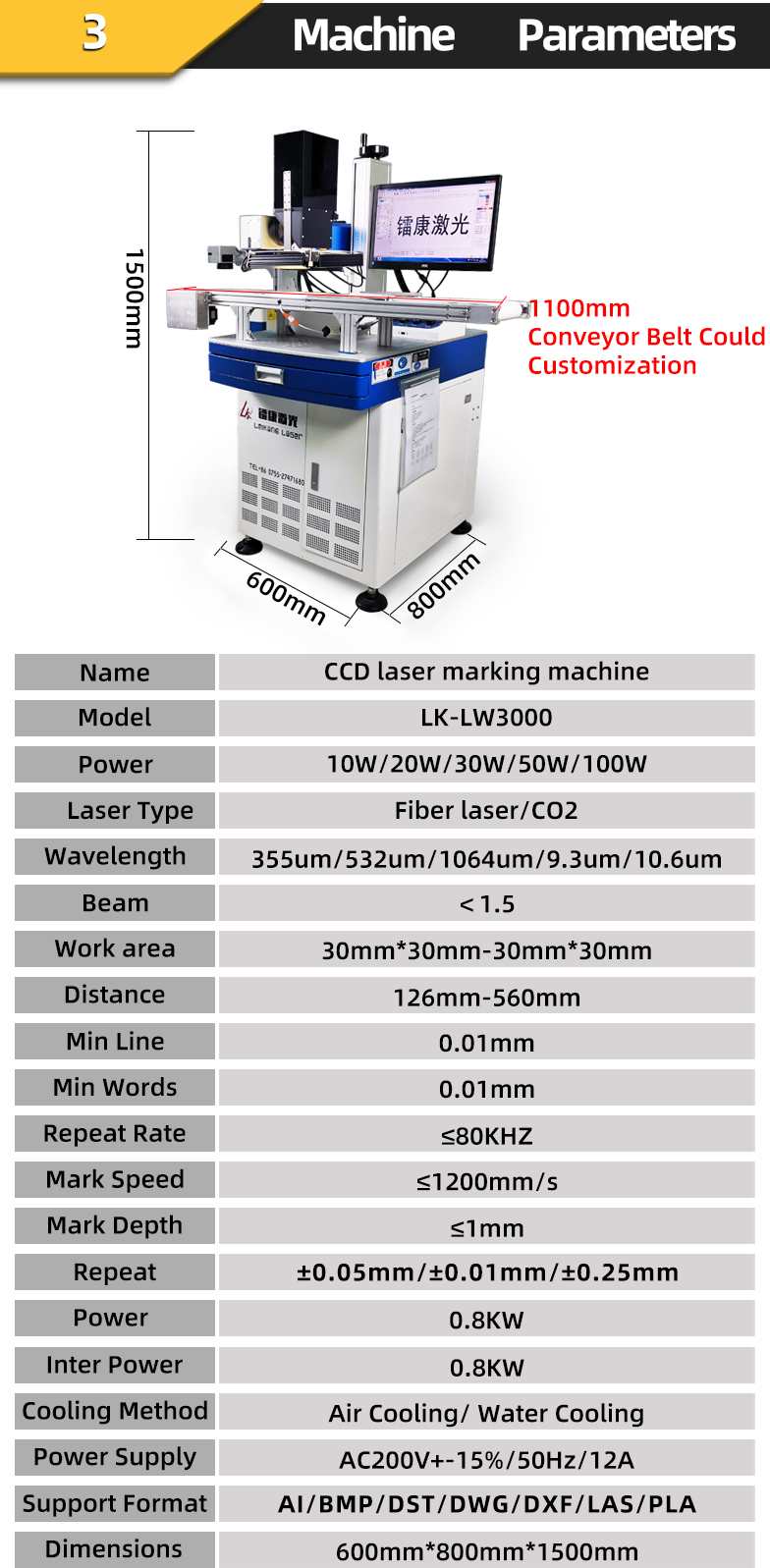

Laser power	20W /30W
Laser Type	Fiber laser
Focus mode	Double red light auxiliary focusing
Filed lens focus length	F-160MM
Effective working area	110*110mm
Marking depth	0.01-1mm (adjustable according to material )
Line width	0.01-0.05mm
Marking Speed	≤10000 mm/s
Repeatability	≤0.001mm
Marking accuracy	≤0.001mm
Marking function	Plane, small curvature

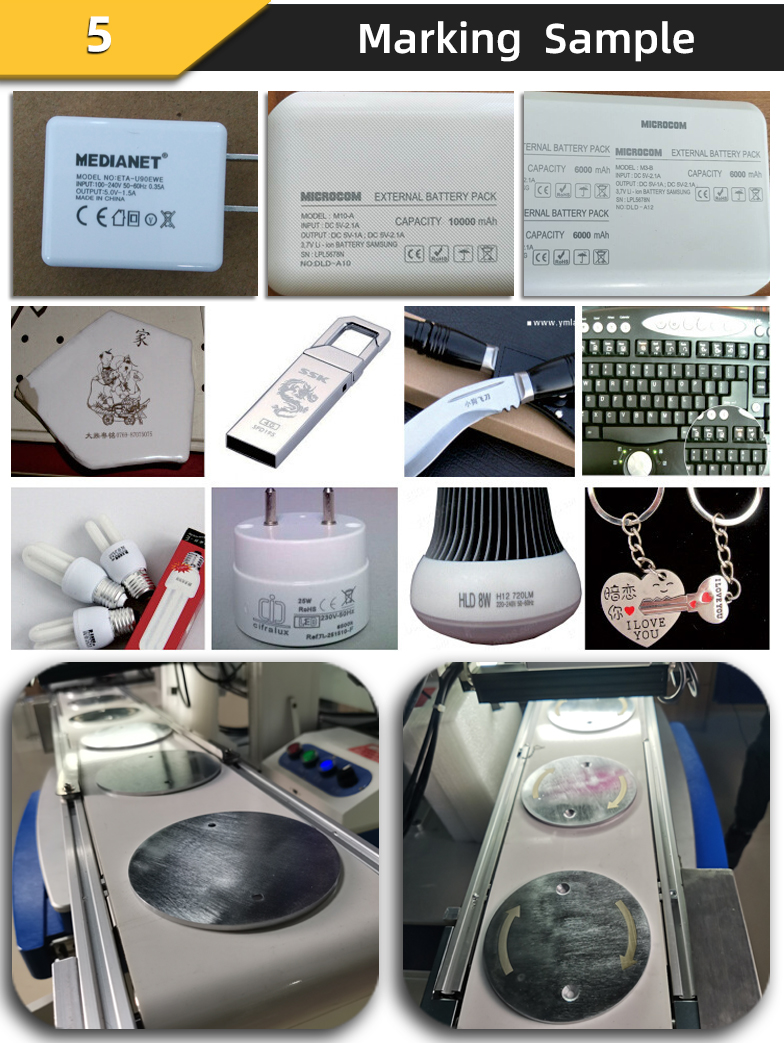

Marking content	English ,Chinese , QR code ,bar code ,numbers,arbitrary graphics, etc
Machine size	300400545mm
Package size	610440720mm
Machine net weight	18.5KGS
Machine gross weight	35KGS
