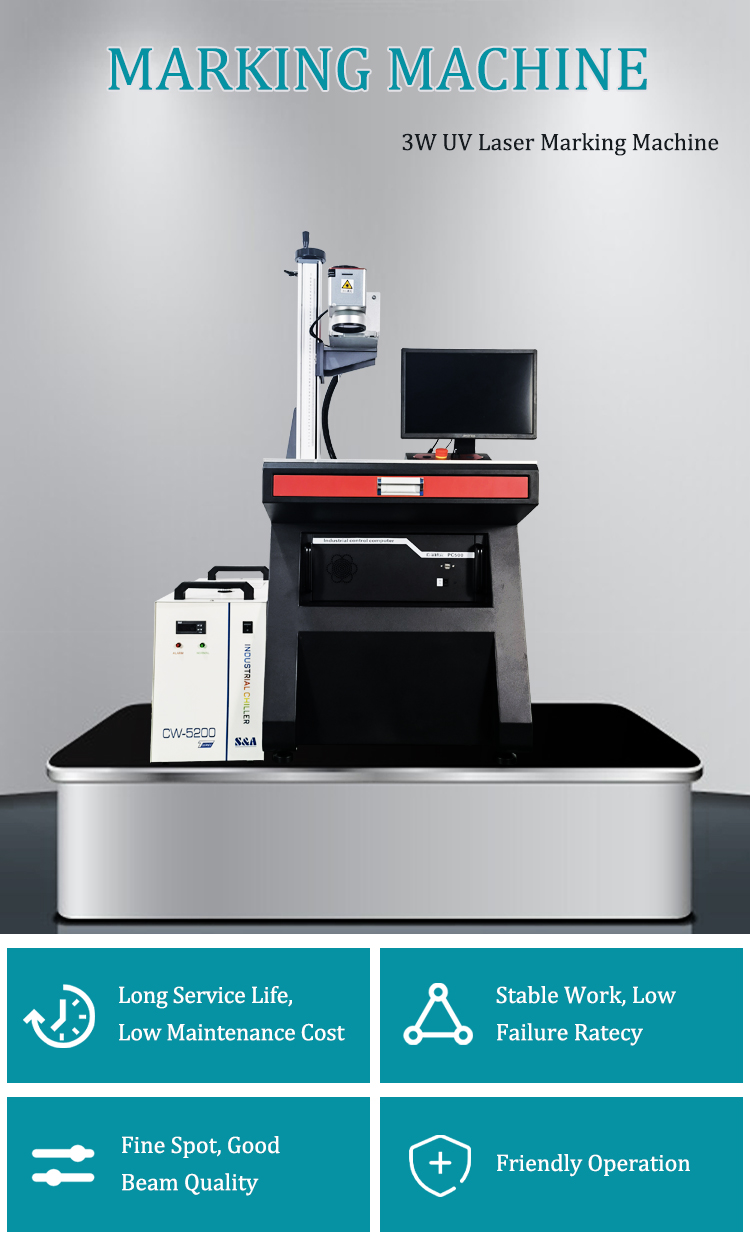

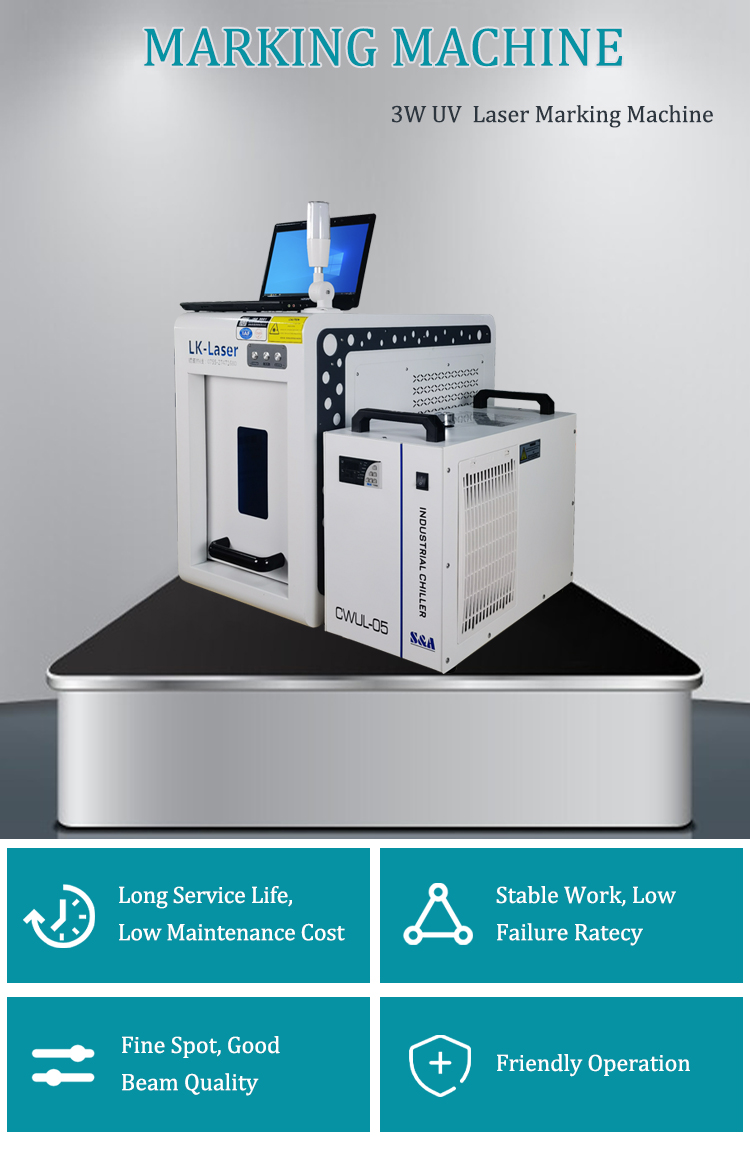

Model :LK-UV
Power options : 3W /5W/ 10W

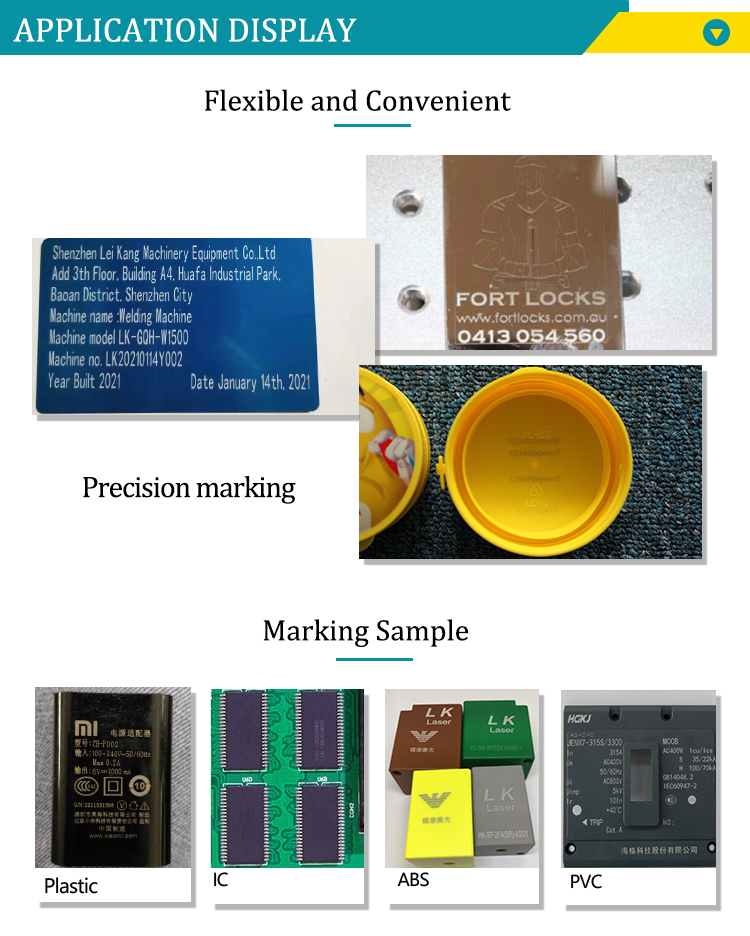

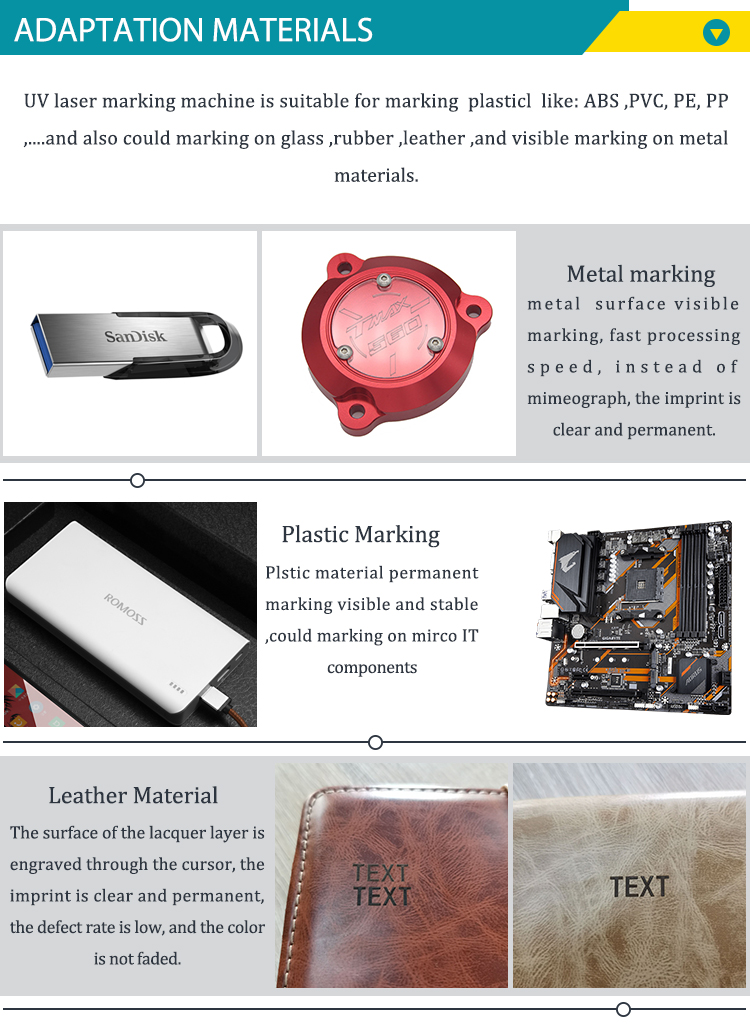

Suit for marking metal ,plastic,glasses marking ,stainless steel, hard alloy, lens, bottles ,ABS, epoxy resin, painted coated products, ceramics, etc.
Lower heating affect with high precision marking effect
24 Month maintenance
Fast delivery
24 Hour treatment
Feature :
1.Working method
UV laser marking machine is a cold working method,Its processing accuracy is high in visible light and infrared band lasers.
The heat affected zone of processing is relatively small and can be marked very meticulous with special materials
2.Lower consume
UV laser marking machines do not have consumables accessories, and the cost of use and maintenance are low.
3.Lower heating affected
UV laser marking machine has small heat affected zone, avoiding damage to processed materials and high yield
4.Good stability

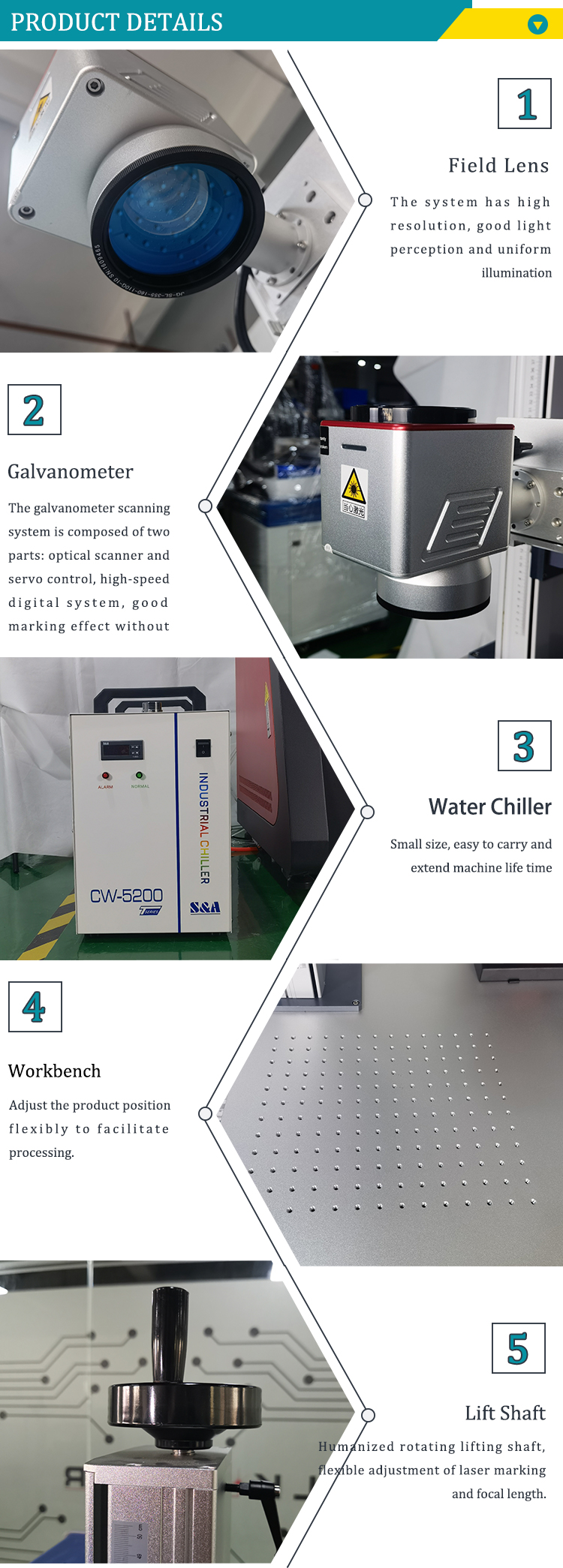

High-configuration violet laser with excellent performance, uniform laser power density, fine spot and stable output power
5.High practicality
Compared with the general laser marking machine, the UV laser marking machine has a very small spot size, which makes the material heat-receiving area smaller and marking material not susceptible to heat deformation; Machine lower power makes the marking is more precise, suitable for ultra-fine marking environment, food and medicine packaging, Glass division, electronic components, metal jewelry marking, etc.
Laser power |
3W/5W/10W |
Laser Type |
UV laser |
Focus mode |
Manual |
Effective working area |
110*110mm |
Marking depth |
0.01-0.03mm |
Line width |
0.01-0.05mm |
Marking Speed |
≤12000 mm/s |
Repeatability |
≤0.001mm |
Marking accuracy |
≤0.001mm |
Marking software |
EZCAD2 |
Marking content |
Image processing,Common vector images are supported. (ai, dxf, dst, plt…) Common types of images are supported. (bmp, jpg, gif, tga, png, tif…) Serial number , QR code, Bar code ....... |
Machine size |
Machine :760*685*980mm ,chiller :345*480*560mm |
Package size |
1210*810*1630mm |
Machine net weight |
150KGS |
Machine gross weight |
160KGS |
4 Mounting screw |
2 Positioning strip |
1 Protective goggles |
1 Pedal |
1 Ruler |
1 tool kit |
1 U disk |
1 box aluminum plate |
1 Power cable |
Machine |
